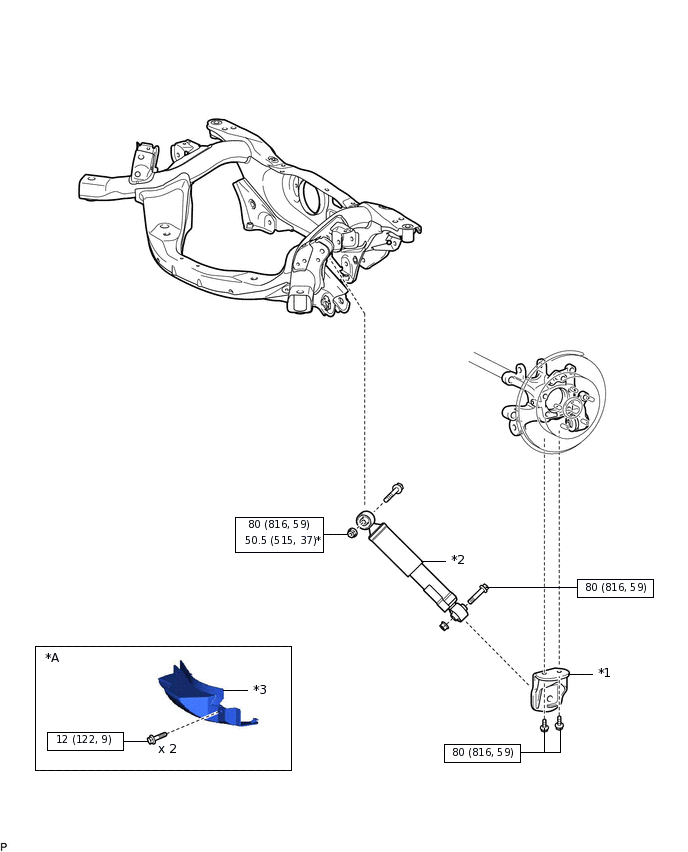

REAR SHOCK ABSORBER COMPONENTS

*A	w/ Cover	-	-
*1	REAR NO. 1 SHOCK ABSORBER BRACKET LH	*2	REAR SHOCK ABSORBER ASSEMBLY LH
*3	REAR SUSPENSION ARM COVER LH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with ball joint lock nut wrench

*A

w/ Cover

-

*1

REAR NO. 1 SHOCK ABSORBER BRACKET LH

*2

REAR SHOCK ABSORBER ASSEMBLY LH

*3

REAR SUSPENSION ARM COVER LH

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with ball joint lock nut wrench
