TIRE PRESSURE WARNING RESET SWITCH REMOVAL

PROCEDURE

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  2. REMOVE TIRE PRESSURE WARNING RESET SWITCH

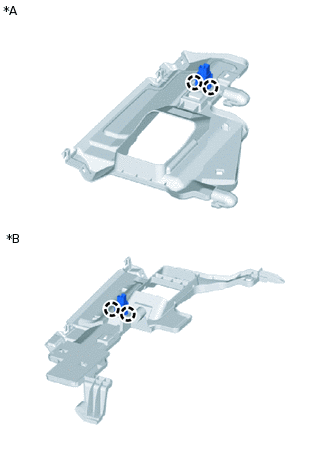

    1. C344383C01

      *A

      for LHD

      *B

      for RHD

      Detach the 2 claws to remove the tire pressure warning reset switch from the No. 1 instrument panel under cover sub-assembly.
