POWER BACK DOOR WARNING BUZZER REMOVAL

PROCEDURE

1. REMOVE BACK DOOR CENTER GARNISH

   Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

   Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

   Tip:

   Use the same procedure described for the LH side.

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   Click here

5. REMOVE WIRELESS DOOR LOCK BUZZER

   1.

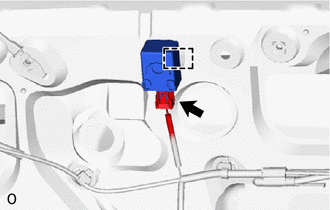

      Disconnect the connector, detach the clamp and remove the wireless door lock buzzer.
