NETWORK GATEWAY ECU(for RHD) INSTALLATION

PROCEDURE

1. INSTALL NETWORK GATEWAY ECU

   1.

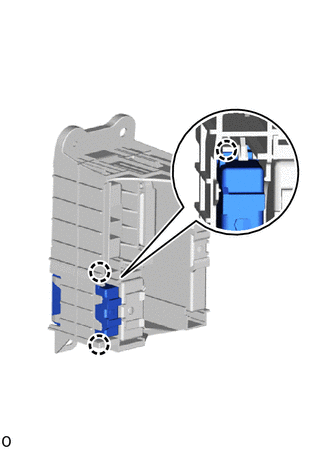

      Insert the network gateway ECU to the ECU integration box RH.

   2. Push in the network gateway ECU to attach the 2 claws.

2. INSTALL ECU INTEGRATION BOX RH

   Click here

3. INSTALL FUSE BOX OPENING COVER

   Click hereClick here

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

   Click hereClick here

5. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

6. INSTALL BATTERY SERVICE COVER

   Click here

7. INSTALL DECK BOARD ASSEMBLY

   Click here
