FUEL LID OPENER SYSTEM

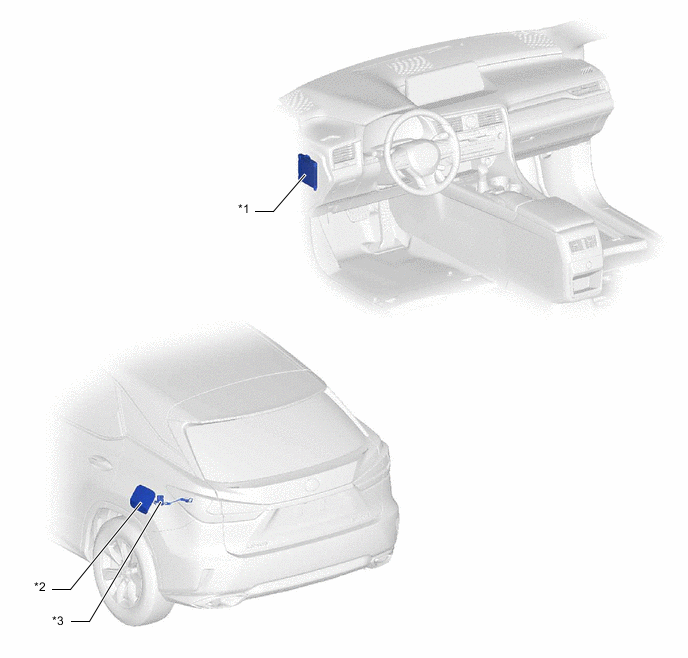

Figure 1. LHD Models
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | FUEL FILLER OPENING LID ASSEMBLY |
| *3 | FUEL LID LOCK WITH MOTOR ASSEMBLY | - | - |

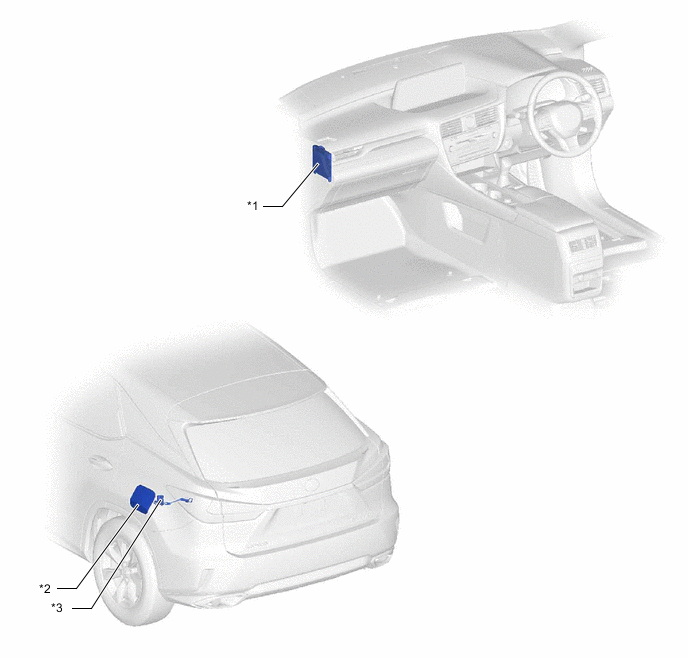

Figure 2. RHD Models
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | FUEL FILLER OPENING LID ASSEMBLY |
| *3 | FUEL LID LOCK WITH MOTOR ASSEMBLY | - | - |
