LANE DEPARTURE ALERT SYSTEM DIAGNOSIS SYSTEM

Tip:

The lane departure alert system operates using systems shared with the pre-crash safety system. When a malfunction is detected in the pre-crash safety system, a malfunction also occurs in the lane departure alert system.

  1. CHECK DLC3

    1. Check the DLC3.

      Click here

  2. FUNCTION OF WARNING INDICATOR

    1. Initial check

      1. Turn the ignition switch off. Wait for at least 2 seconds, and then turn the ignition switch to ON. Lane departure alert system diagnosis is performed for approximately 5 seconds.

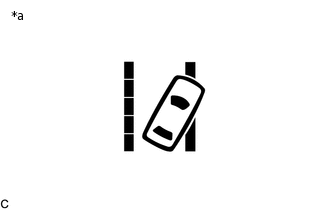

      2. A349199C07

        *a

        Lane Departure Alert Indicator Light (Yellow)

        If the initial check discovers a malfunction, the lane departure alert indicator light (yellow) in the combination meter assembly illuminates approximately 5 seconds after the initial check is complete.

        Tip:

        The lane departure alert indicator light (yellow) illuminates when a malfunction in the lane departure alert system is detected and a DTC is output.
