WASHER NOZZLE INSPECTION

PROCEDURE

  1. INSPECT WASHER NOZZLE SUB-ASSEMBLY (w/ Heater)

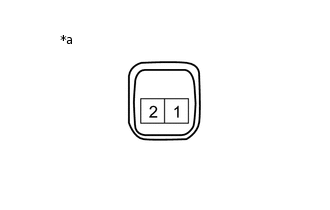

    1. E327717C01

      *a

      Component without harness connected (Washer Nozzle Sub-Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Always

      2.2 Ω

      If the result is not as specified, replace the washer nozzle sub-assembly LH.
