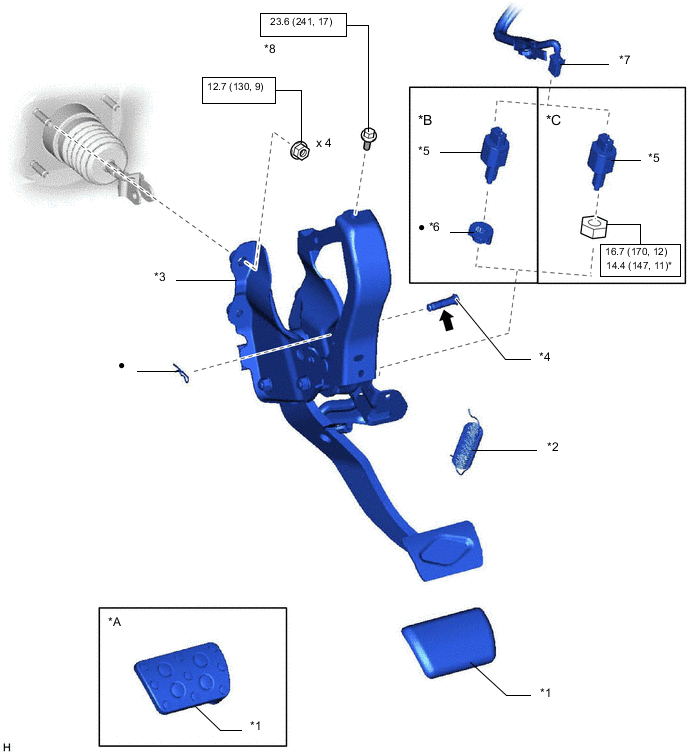

BRAKE PEDAL(for LHD) COMPONENTS
ILLUSTRATION
| *A | for Sport Package | *B | for Plastic Type |
| *C | for Metal Type | - | - |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | PUSH ROD PIN |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | STOP LIGHT SWITCH MOUNTING ADJUSTER |
| *7 | STOP LIGHT SWITCH CONNECTOR | *8 | BRAKE PEDAL SUPPORT REINFORCEMENT SET BOLT |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with union nut wrench |
| ● | Non-reusable part |  |
Lithium soap base glycol grease |
