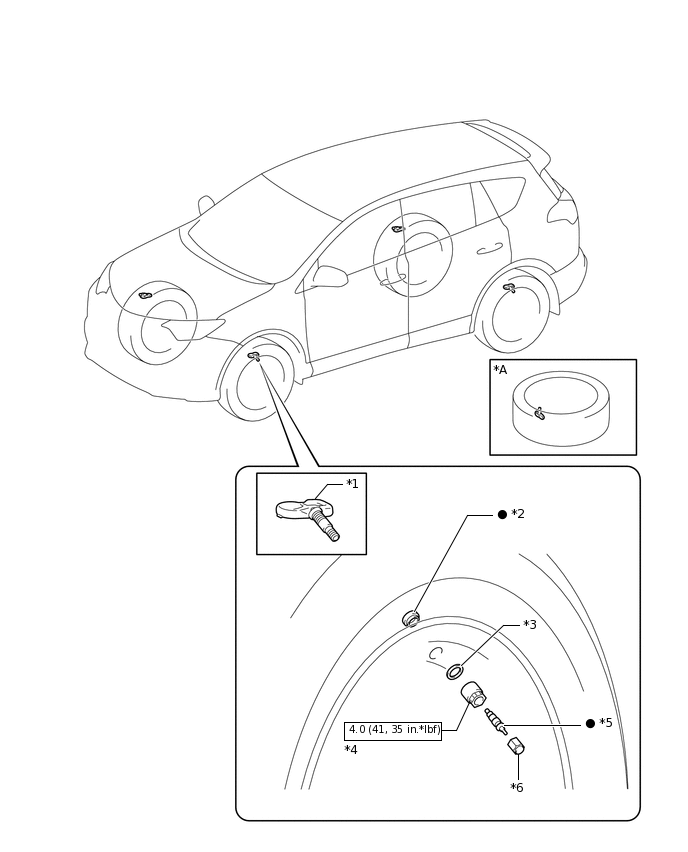

TIRE PRESSURE WARNING VALVE COMPONENTS

*A	w/ Full Size Spare Tire	-	-
*1	TIRE PRESSURE WARNING VALVE AND TRANSMITTER	*2	GROMMET
*3	WASHER	*4	NUT
*5	VALVE CORE	*6	VALVE CAP
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part

*A

w/ Full Size Spare Tire

-

*1

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*2

GROMMET

*3

WASHER

*4

NUT

*5

VALVE CORE

*6

VALVE CAP

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
