AUDIO AND VISUAL SYSTEM(for Radio Receiver Type) PARTS LOCATION

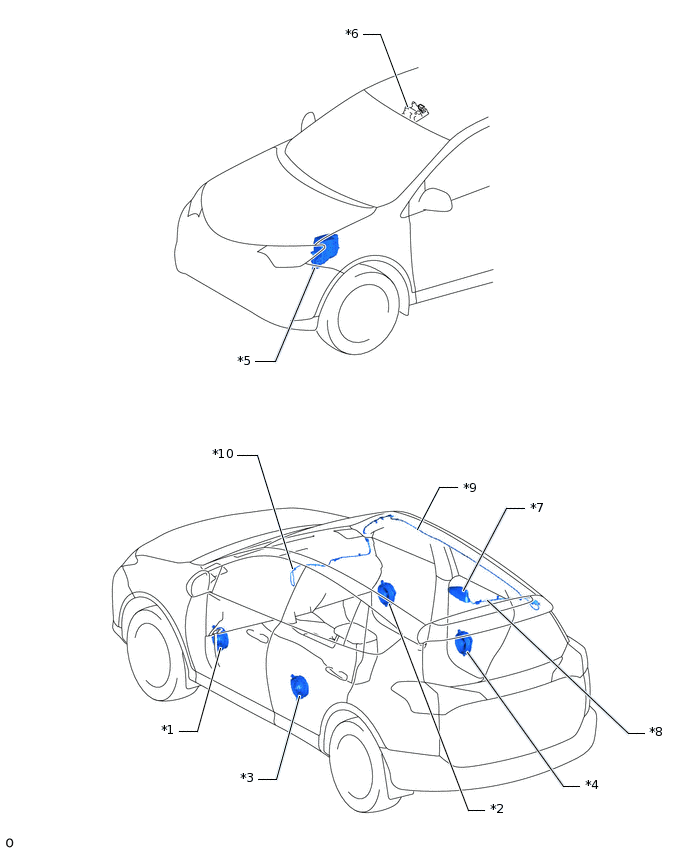

ILLUSTRATION
*1 |
FRONT NO. 1 SPEAKER ASSEMBLY LH |
*2 |
FRONT NO. 1 SPEAKER ASSEMBLY RH |
*3 |
REAR SPEAKER ASSEMBLY LH |
*4 |
REAR SPEAKER ASSEMBLY RH |
*5 |
ENGINE ROOM NO. 1 RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - RADIO FUSE |
*6 |
MAP LIGHT ASSEMBLY - TELEPHONE MICROPHONE ASSEMBLY |
*7 |
NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
*8 |
NO. 3 ANTENNA CORD SUB-ASSEMBLY |
*9 |
NO. 2 ANTENNA CORD SUB-ASSEMBLY |
*10 |
ANTENNA CORD SUB-ASSEMBLY |

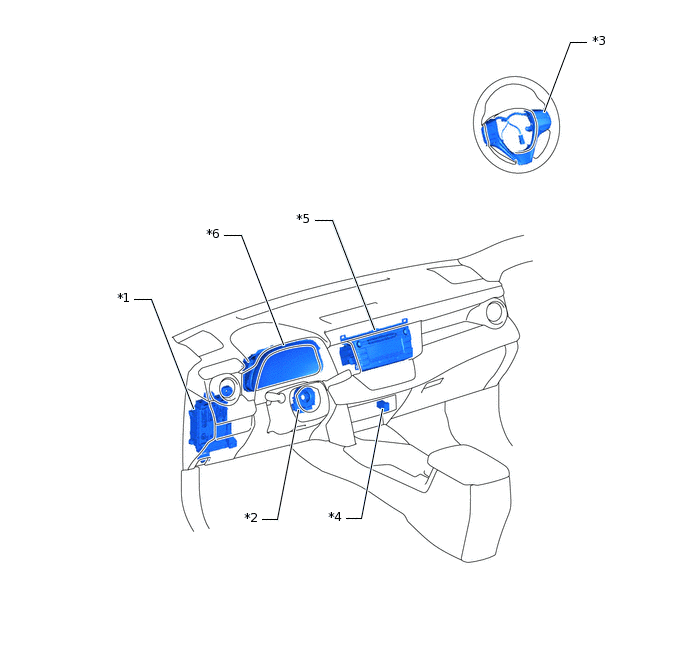

ILLUSTRATION
*1 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC FUSE |
*2 |
SPIRAL CABLE SUB-ASSEMBLY |
*3 |
STEERING PAD SWITCH ASSEMBLY |
*4 |
NO. 1 STEREO JACK ADAPTER ASSEMBLY |
*5 |
RADIO RECEIVER ASSEMBLY |
*6 |
COMBINATION METER ASSEMBLY |
