CENTER AIRBAG SENSOR ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL AIRBAG ECU ASSEMBLY




   1. Check that the engine switch is off.

   2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:




      •

        Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      •

        If this procedure is performed without disconnecting the negative (-) battery terminal, the airbag may deploy even if an impact is applied only to the airbag ECU assembly. Therefore, make sure that the negative (-) battery terminal is disconnected before performing this procedure.

   3.

      Install the airbag ECU assembly with the 3 bolts.

      Torque:

      17.5 N*m  { 178 kgf*cm, 13 ft.*lbf }

      Note




      • If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the airbag ECU assembly with a new one.

      • When installing the airbag ECU assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • When the engine switch is first turned to ON after the airbag ECU assembly has been replaced, make sure that no one is in the vehicle.

   4.

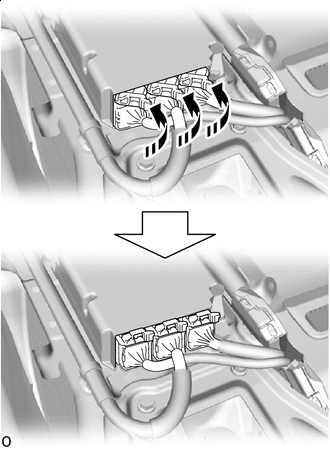

      Push in

      Connect the 3 connectors and push in the lock lever to lock the connector.

      Note

      When connecting any airbag connector, take care not to damage the airbag wire harness.

   5. Check that there is no looseness in the installation parts of the airbag ECU assembly.

2. INSTALL CONSOLE BOX ASSEMBLY

   Click here

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

   Click here

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click here

4. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

   Click here

5. PERFORM DIAGNOSTIC SYSTEM CHECK

   Click here

6. CHECK SRS WARNING LIGHT

   Click here
