FRONT BUMPER REASSEMBLY

PROCEDURE

  1. INSTALL FRONT BUMPER MOULDING

    1. Install the front bumper moulding with the 11 clips.

  2. INSTALL FRONT BUMPER GUARD

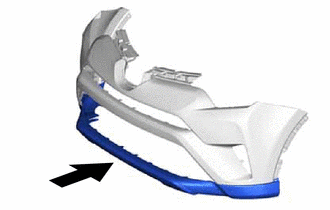

    1. B432931

      Install the front bumper guard as shown in the illustration.

    2. Install the 2 clips.

  3. INSTALL FRONT BUMPER GUARD PAD LH

    1. B425600C01

      *a

      Clip A

      *b

      Clip B

      Install the front bumper guard pad LH with the clip labeled B.

    2. Install the clip labeled A.

  4. INSTALL FRONT BUMPER GUARD PAD RH

    Tip:

    Use the same procedure described for the LH side.

  5. INSTALL LOWER RADIATOR GRILLE LH

    1. Attach the 4 claws to install the lower radiator grille LH.

    2. Install the 2 clips.

  6. INSTALL LOWER NO. 2 RADIATOR GRILLE

    1. Attach the 22 claws to install the lower No. 2 radiator grille.

    2. Install the 2 clips.

  7. INSTALL FRONT BUMPER ARM HOLE COVER LH

    1. Attach the 4 claws and guide to install the front bumper arm hole cover LH.

  8. INSTALL FRONT BUMPER ARM HOLE COVER RH

    Tip:

    Use the same procedure described for the LH side.

  9. INSTALL FRONT BUMPER EXTENSION LH

    1. Install the front bumper extension LH with the 5 clips.

  10. INSTALL FRONT BUMPER EXTENSION RH

    Tip:

    Use the same procedure described for the LH side.

  11. INSTALL LOWER NO. 1 RADIATOR GRILLE

    1. Attach the 16 claws and 2 guides to install the lower No. 1 radiator grille.

  12. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

    Click here

  13. INSTALL FRONT BUMPER EXTENTION MOUNTING BRACKET

    1. Install the front bumper extension moulding bracket with the 2 screws.

  14. INSTALL FRONT BUMPER EXTENSION MOULDING LH (w/ Fog Light)

    1. Attach the 3 claws to install the front bumper extension moulding LH.

  15. INSTALL FRONT BUMPER EXTENSION MOULDING RH (w/ Fog Light)

    Tip:

    Use the same procedure described for the LH side.

  16. INSTALL FRONT BUMPER HOLE COVER LH

    1. Attach the 5 claws to install the front bumper hole cover LH.

    2. Install the clip.

  17. INSTALL FRONT BUMPER HOLE COVER RH

    Tip:

    Use the same procedure described for the LH side.

  18. INSTALL NO. 3 ENGINE ROOM WIRE

    1. Attach each clamp to install the No. 3 engine room wire.

      B427343C01

      *A

      w/ Pre-crash Safety System

      *B

      w/ TOYOTA Parking Assist-sensor System

  19. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  20. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tip:

    Use the same procedure described for the LH side.

  21. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  22. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tip:

    Use the same procedure described for the LH side.

  23. INSTALL HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)

    Click here

  24. INSTALL TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  25. INSTALL TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tip:

    Use the same procedure described for the LH side.

  26. INSTALL FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Click here

  27. INSTALL NO. 1 ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

    Click here

  28. INSTALL ULTRASONIC SENSOR CLIP (w/ TOYOTA Parking Assist-sensor System)

    Click here

  29. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-crash Safety System)

    Click here
