LUBRICATION SYSTEM


  1. CONSTRUCTION


    1. A compact cycloid rotor type oil pump directly driven by the crankshaft is used.

    2. This oil pump uses an internal relief method which circulates relief oil to the oil passage in the oil pump. This aims to minimize oil level change in the oil pan, reduce friction, and reduce the air mixing rate in the oil.

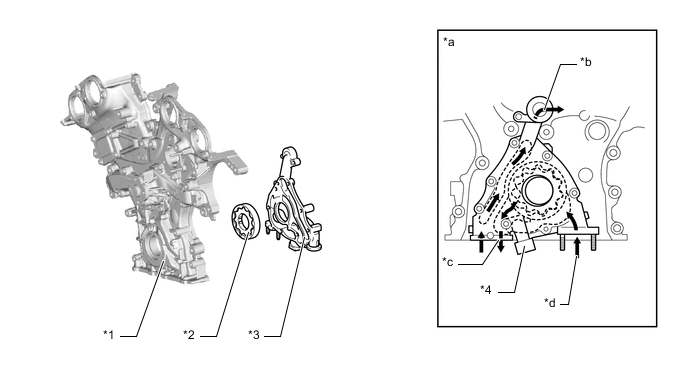

      A01R8BRC04
      *1 Timing Chain Cover Assembly *2 Oil Pump Rotor (Cycloid Rotor)
      *3 Oil Pump Cover *4 Oil Pump Relief Valve
      *a Oil Passage in the Oil Pump *b to Cylinder Block Sub-assembly
      *c to Oil Filter *d from Oil Strainer Sub-assembly
