QUARTER WINDOW GLASS REMOVAL

CAUTION / NOTICE / HINT

PROCEDURE

1. REMOVE DECK BOARD ASSEMBLY

   Click here

2. REMOVE BATTERY SERVICE COVER

   Click here

3. PRECAUTION

   Note:

   After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

   Click hereClick hereClick hereClick here

4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

   Note:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click hereClick hereClick here

5. REMOVE NO. 1 SEAT LEG ASSEMBLY

   Click here

6. REMOVE PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

   Click here

7. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

   Click here

8. REMOVE REAR NO. 3 FLOOR BOARD

   Click here

9. REMOVE REAR NO. 2 FLOOR BOARD

   Tip:

   Use the same procedure described for the rear No. 3 floor board side.

10. REMOVE DECK TRIM SIDE COVER BASE LH

    Click here

11. REMOVE DECK FLOOR BOX LH

    Click here

12. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

13. REMOVE REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

    Click here

14. REMOVE REAR DECK TRIM COVER (w/ Full Size Spare Tire)

    Click here

15. REMOVE REAR SEAT ASSEMBLY

    Click here

16. REMOVE REAR DOOR SCUFF PLATE LH

    Click here

17. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

18. REMOVE DECK TRIM SERVICE HOLE COVER

    Click here

19. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Click here

20. REMOVE SEAT BELT ANCHOR COVER CAP

    Click here

21. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH

    Click here

22. REMOVE ROOF HEADLINING ASSEMBLY

    1. Partially remove the roof headlining assembly.

       Click here

       Tip:

       It is not necessary to completely remove the roof headlining assembly. Slightly lower the rear section of the roof headlining assembly so that the quarter window glass assembly LH can be removed.

23. REMOVE QUARTER WINDOW ASSEMBLY LH

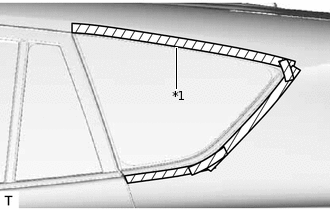

    *1	Protective Tape

    Tip:

    Apply protective tape to the outer surface of the vehicle body to prevent scratches.

    Note:

    When separating the quarter window assembly from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.

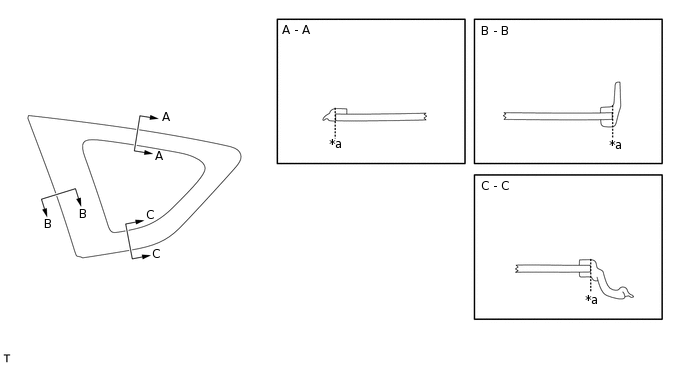

    1. Using a knife, cut off the moulding as shown in the illustration.

       Note:

       Be careful not to damage the vehicle body.



       *a

       Cut

       -

       -

    2. Disconnect the connector.

    3. From the interior, insert a piano wire between the vehicle body and the quarter window assembly as shown in the illustration.

    4. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

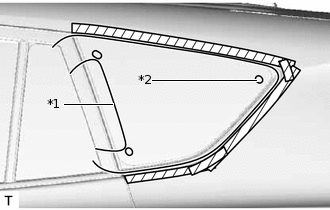

    5.

       *1	Wire
       *2	Clip

       Cut through the adhesive by pulling the piano wire around the quarter window glass.

       Note:

       Leave as much adhesive on the vehicle body as possible when removing the quarter window assembly.

    6. Using suction cups, remove the quarter window assembly LH.

       Tip:

       • Be careful not to drop the quarter window assembly.

       • Be sure to replace the quarter window assembly with a new one.

24. CLEAN VEHICLE BODY

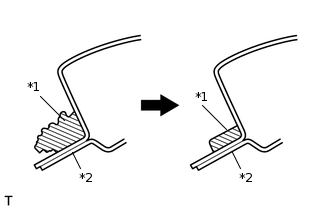

    *1	Adhesive
    *2	Vehicle Body

    1. Clean and shape the contact surface of the vehicle body.

       1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

          Tip:

          Leave as much adhesive on the vehicle body as possible.

          Note:

          Be careful not to damage the vehicle body.

       2. Clean the contact surface of the vehicle body with cleaner.

          Tip:

          Even if all the adhesive has been removed, clean the vehicle body.
