RADIATOR COMPONENTS

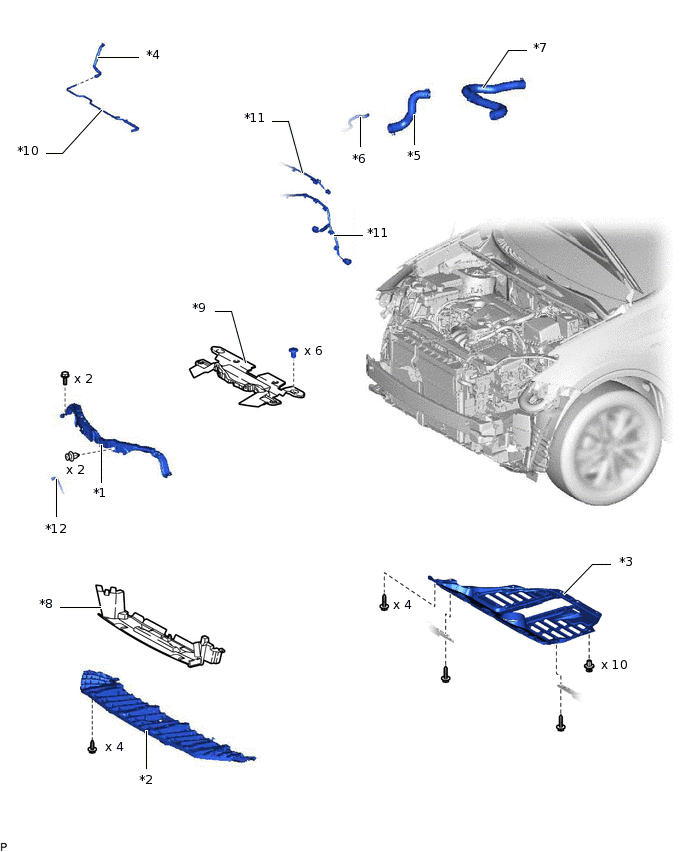

ILLUSTRATION
*1 |
FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY |
*2 |
FRONT LOWER BUMPER ABSORBER |
*3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 1 WATER BY-PASS HOSE |
*5 |
NO. 2 RADIATOR HOSE |
*6 |
NO. 2 WATER BY-PASS HOSE |
*7 |
RADIATOR HOSE SUB-ASSEMBLY |
*8 |
RADIATOR LOWER AIR GUIDE PLATE |
*9 |
RADIATOR UPPER AIR GUIDE PLATE |
*10 |
WATER BY-PASS PIPE |
*11 |
WIRE HARNESS |
*12 |
HORN CONNECTOR |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |

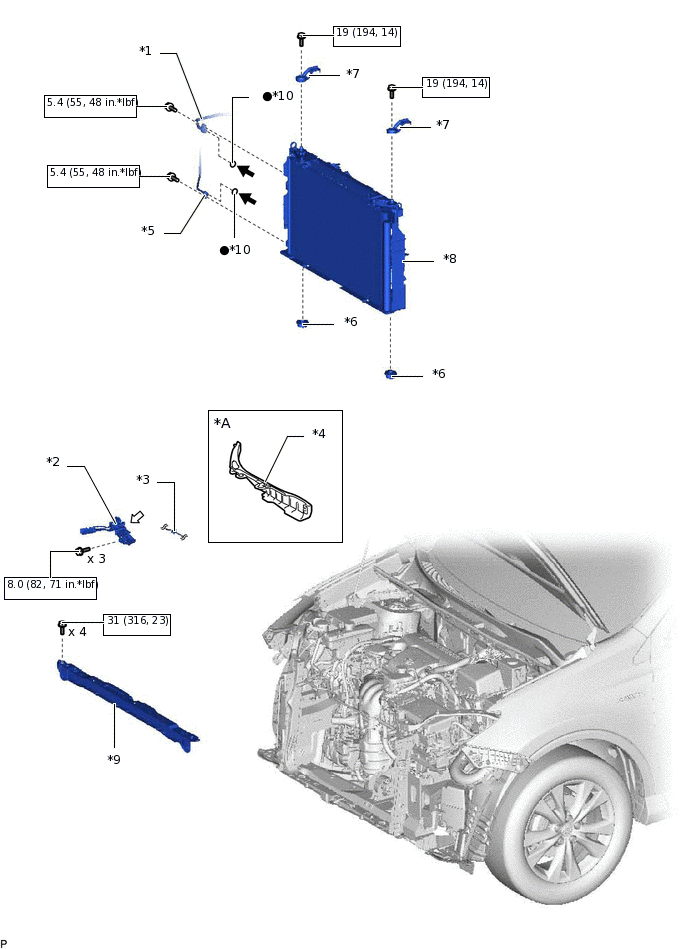

ILLUSTRATION
*A |
w/ COVER |
- |
- |
*1 |
DISCHARGE HOSE SUB-ASSEMBLY |
*2 |
HOOD LOCK ASSEMBLY |
*3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK CONTROL CABLE COVER |
*5 |
LIQUID PIPE SUB-ASSEMBLY |
*6 |
LOWER RADIATOR SUPPORT |
*7 |
NO. 1 RADIATOR SUPPORT |
*8 |
RADIATOR ASSEMBLY |
*9 |
UPPER RADIATOR SUPPORT |
*10 |
O-RING |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent |
 |
MP grease |

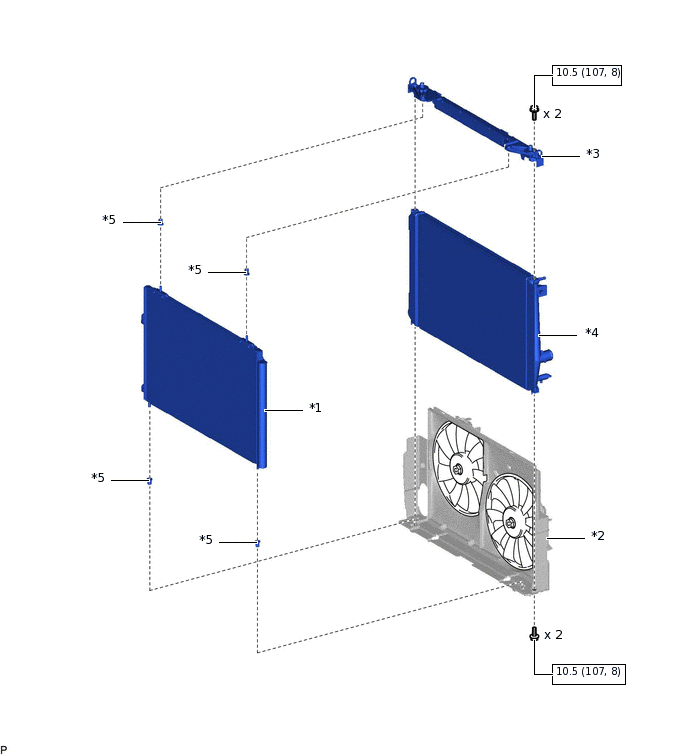

ILLUSTRATION
*1 |
COOLER CONDENSER ASSEMBLY |
*2 |
FAN SHROUD |
*3 |
NO. 2 FAN SHROUD |
*4 |
RADIATOR ASSEMBLY |
*5 |
CUSHION |
- |
- |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |
