WASHER MOTOR(for Front Side) INSTALLATION

PROCEDURE

  1. INSTALL WINDSHIELD WASHER JAR BUSH

    1. Install a new windshield washer jar bush to the washer jar.

  2. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

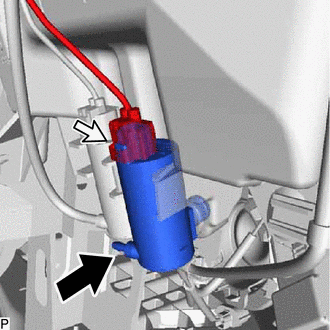

    1. E295047

      Install the windshield washer motor and pump assembly as shown in the illustration.

    2. Connect the connector.

    3. Connect the washer hose to windshield washer motor and pump assembly.

  3. INSTALL FRONT FENDER LINER RH

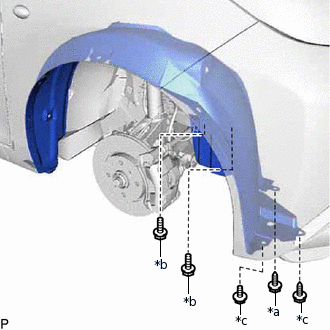

    1. E295043C01

      *a

      Bolt (A)

      *b

      Bolt (B)

      *c

      Screw

      Install the front fender liner RH with the bolt (A) and 2 bolts (B).

    2. Install the 2 screws.

    3. Install 3 new grommets.

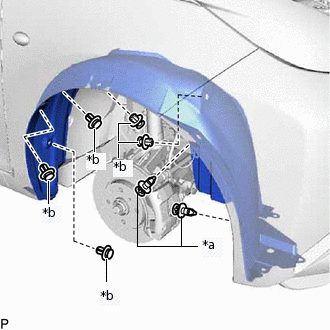

    4. E295042C01

      *a

      Clip (A)

      *b

      Clip (B)

      Install the 2 clips (A).

    5. Install the 5 clips (B).

  4. ADD WINDSHIELD WASHER FLUID

    1. Add windshield washer fluid to the washer jar.

  5. INSTALL FRONT WHEEL RH
