AUDIO AND VISUAL SYSTEM


  1. OUTLINE


    1. Audio System


      1. The audio systems shown below are provided:

        Audio System Audio Head Unit Speaker
        Base Audio System Radio Receiver Assembly 4 Speakers
        6 Speakers
        Display Audio System Radio and Display Receiver Assembly 6 Speakers
        11 Speakers
        Navigation System Radio and Display Receiver Assembly + Extension Box (Navigation ECU) 6 Speakers
        11 Speakers

    2. Audio Head Unit


      1. Discs containing MPEG audio layer-3 (MP3) files, Windows Media Audio (WMA) files and Advanced Audio Coding (AAC) files* can be played.


        • *: Models with display audio system or navigation system

      2. The status of the audio source currently selected can be displayed on the multi-information display in the combination meter assembly. In addition, switching the audio source or selecting a song or radio station can be performed on the multi-information display.

      3. Discs with the marks shown below can be played.

        A01VDGNC10
        *A Models with Radio Receiver Assembly *B Models with Radio and Display Receiver Assembly
        *C Models with CD Player *D Models with DVD Player

    3. Digital Audio Broadcast (DAB) (Models with Digital Audio Broadcast)


      1. Digital Audio Broadcast (DAB) reception is available. This mostly prevents broadcast interference, achieving clear reception with high quality sound.

      2. The time shift operation function can be used to play back programs at a later time.

        Tech Tips

        The amount of playback possible depends on the bit rate of the DAB station to be recorded, the amount of DAB unit memory, and the time at which reception of the broadcast began.

    4. USB/AUX Port


      1. A USB port is provided that enables the use of a USB memory stick, portable audio player (USB type), iPhone, iPod, iPod classic, iPod nano or iPod touch.

        A01VDFO

        Tech Tips


        • iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

        • The following iPod, iPod nano, iPod classic, iPod touch and iPhone devices can be used with this system.


          • Made for

          • iPod touch (5th generation)

          • iPod touch (4th generation)

          • iPod touch (3rd generation)

          • iPod touch (2nd generation)

          • iPod touch (1st generation)

          • iPod classic

          • iPod with video

          • iPod nano (7th generation)

          • iPod nano (6th generation)

          • iPod nano (5th generation)

          • iPod nano (4th generation)

          • iPod nano (3rd generation)

          • iPod nano (2nd generation)

          • iPod nano (1st generation)

          • iPhone 5

          • iPhone 4S

          • iPhone 4

          • iPhone 3GS

          • iPhone 3G

          • iPhone

      2. Depending on differences between models or software versions, etc., some models might be incompatible with this system.

      3. USB memory devices that meet the following specifications are supported:

        USB Communication Formats

        • USB 2.0, Full Speed (12 Mbps)

        • USB 2.0, High Speed (480 Mbps)*
        File System FAT 16/32
        Correspondence Class Mass Storage Class
        File Format MP3, WMA, AAC*

        • *: Models with display audio system or navigation system

    5. Bluetooth Audio System


      1. The Bluetooth audio system enables users to enjoy music played on a portable audio player from the vehicle speakers via wireless communication.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Bluetooth Specification Version 1.1 or higher*1/Version 2.0 or higher*2, *3 Required
        Version 2.1+EDR or higher*1/Version 3.0+EDR or higher*2, *3 Recommended
        Profile Advanced Audio Distribution Profile (A2DP) Version 1.0 or higher Required
        Advanced Audio Distribution Profile (A2DP) Version 1.2 or higher Recommended
        Audio/Video Remote Control Profile (AVRCP) Version 1.0 or higher Required
        Audio/Video Remote Control Profile (AVRCP) Version 1.3 or higher*1 Recommended
        Audio/Video Remote Control Profile (AVRCP) Version 1.4 or higher*2, *3 Recommended

        • *1: Models with base audio system

        • *2: Models with navigation system

        • *3: Models with display audio system

    6. Bluetooth Hands-free System


      1. The Bluetooth hands-free system allows the user to make or receive a call without taking their hands off the steering wheel when the system is linked with a Bluetooth-compatible cellular phone.

      2. The Bluetooth specifications and profiles required for operation are as follows:

        Specification/Profile Version
        Bluetooth Specification Version 1.1 or higher*1/Version 2.0 or higher*2, *3 Required
        Version 2.1+EDR or higher*1/Version 3.0+EDR or higher*2, *3 Recommended
        Profile Hands Free Profile (HFP) Version 1.0 or higher Required
        Hands Free Profile (HFP) Version 1.5*1/1.6*2, *3 or higher Recommended
        Object Push Profile (OPP) Version 1.1 or higher*5 Required
        Object Push Profile (OPP) Version 1.2 or higher*5 Recommended
        Phone Book Access Profile (PBAP) Version 1.0 or higher Required
        Phone Book Access Profile (PBAP) Version 1.1 or higher*3, *5 Recommended
        Message Access Profile (MAP) Version 1.0 or higher*4 Recommended

        Tech Tips

        *1: Models with base audio system

        *2: Models with navigation system

        *3: Models with display audio system

        *4: Models for Europe

        *5: Except models for Europe


        • The operation of the interrupt call function of the Bluetooth hands-free system may vary with the Bluetooth phone or the telephone company that is used.

          A01VDE4 "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.

        • Some profiles described above may not be supported by the system depending on the audio head unit equipped.

        • If the specification of the connected Bluetooth phone is lower than the recommended specification or does not support the functions required, the available functions may be limited.

        • Registration and connection of a Bluetooth phone is not available when only Object Push Profile (OPP), Phone Book Access Profile (PBAP), Serial Port Profile (SPP) and MAP (Message Access Profile) are supported.

      3. When a Bluetooth phone is connected to the audio head unit, e-mails and Short Message Service (SMS) messages received on the phone can be displayed or read out. In addition, it is possible to reply to the received e-mail and Short Message Service (SMS) messages. (Messages may not be displayed depending on the message service or profile that the connected Bluetooth phone supports.)

      4. The user can confirm the Bluetooth connection status*, signal strength and remaining battery level of the cellular phone, which is connected by Bluetooth, using the status bar displayed on the screen. The status bar is displayed in any mode.*


        • *: Except models for Europe

        A01VDE6C01
        *A Models for Europe *B Except Models for Europe
        Item Outline
        (1) Roaming area status*1, *2 "R" is displayed when receiving in a roaming area.
        (2) Cellular phone signal strength*3 Displays the signal strength of the Bluetooth connected cellular phone.
        (3) Cellular phone battery level*3, *4 Displays the battery level of the Bluetooth connected cellular phone.
        (4) Bluetooth connection status Displays the Bluetooth connection status between the audio head unit and cellular phone.

        Tech Tips

        *1: Models for Europe

        *2: The receiving area may not be displayed depending on the phone.

        *3: May not be displayed depending on the Bluetooth specifications and profiles of the cellular phone.

        *4: Models with display audio system or navigation system

    7. Automatic Sound Levelizer (ASL)


      1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases).

      2. Vehicle speed signals are received from the combination meter assembly and used for ASL control.

    8. Steering Pad Switch Assembly


      1. Switches that the driver often uses are provided on the steering wheel for convenience.

  2. SPECIFICATION


    1. Audio System

      Design Specification Destination
      A01VDF5

        Display Audio System:

      • 7.0-inch WVGA TFT Display

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner (Models with Digtal Audio Broadcast (DAB)

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Panasonic

      		 Europe (LHD)
      A01VDF5

        Navigation System:

      • 7.0-inch WVGA TFT Display

      • AM/FM Tuner

      • Digital Audio Broadcast (DAB) Tuner (Models with Digtal Audio Broadcast (DAB)

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • Extension Box: HARMAN BECKER (Models with Extension Box)

      • 6-speaker System

      • Unit: Panasonic
      A01VDFA

        Display Audio System:

      • 7.0-inch WVGA TFT Display

      • AM/FM Tuner

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Panasonic

      		 Europe (RHD)
      A01VDFA

        Navigation System:

      • 7.0-inch WVGA TFT Display

      • AM/FM Tuner

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • Extension Box: HARMAN BECKER (Models with Extension Box)

      • 6-speaker System

      • Unit: Panasonic
      A01VDDQ

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • 4-speaker System

      • Unit: Pioneer

      		 General Countries (LHD)
      A01VDDQ

        Base Audio System:

      • AM/FM Tuner

      • CD Player

      • CD-TEXT Display Function

      • MP3 and WMA Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • 4-speaker System

      • Unit: Pioneer

      		 General Countries (LHD)
      A01VDF1

        Display Audio System:

      • 6.1-inch WVGA TFT Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Pioneer

      		 General Countries (LHD)
      A01VDF1

        Display Audio System:

      • 6.1-inch WVGA TFT Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Pioneer

      		 General Countries (LHD)
      A01VDF1

        Display Audio System:

      • 6.1-inch WVGA TFT Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Pioneer

      		 General Countries (LHD)
      A01VDEL

        Display Audio System:

      • 6.1-inch WVGA TFT Display

      • AM/FM Tuner

      • CD/DVD Player

      • CD-TEXT Display Function

      • MP3, WMA and ACC Playback Function

      • Bluetooth Audio System

      • Bluetooth Hands-free System

      • Stereo Jack Adapter (USB, AUX Port)

      • iPod/iPhone Operation Function

      • MirrorLinkTMFunction

      • 6-speaker System

      • Unit: Fujitsu Ten

      		 Korea

      Tech Tips

      *: Supported display languages vary depending on the vehicle destination. The above chart is a representative example.

    2. 4-speaker System

      A01VDF9E01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      *1 Front No. 1 Speaker Assembly (Full-range) 2 160 mm (6.3 in.) 4 Ω 20 W
      *2 Rear Speaker Assembly (Full-range) 2 160 mm (6.3 in.) 4 Ω 20 W

    3. 6-speaker System

      A01VDDPE01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      *1 Front No. 2 Speaker Assembly (Tweeter) 2 25 mm (1.0 in.) 4 Ω 20 W
      *2 Front No. 1 Speaker Assembly (Full-range) 2 160 mm (6.3 in.) 4 Ω 20 W
      *3 Rear Speaker Assembly (Full-range) 2 160 mm (6.3 in.) 4 Ω 20 W

    4. 11-speaker System

      A01VDH3E01
      Location Speaker Name Quantity Size Impedance Rated Input Power
      *1 Front No. 2 Speaker Assembly (Tweeter + Mid-range) 2 80 mm (3.1 in.) 4.3 Ω 3 W
      *2 Front No. 1 Speaker Assembly (Woofer) 2 170 mm (6.7 in.) 5.8 Ω 7 W
      *3 Rear Speaker Assembly (Tweeter + Mid-range) 2 170 mm (6.7 in.) 4 Ω 6 W
      *4 Woofer Box Speaker Assembly (Sub-woofer) 1 190 mm (7.5 in.) 5.4 Ω 4.3 W

  3. MAIN FEATURES


    1. MirrorLinkTMFunction (Models with MirrorLinkTMFunction)


      1. To utilize the MirrorLinkTMfunction, it is necessary to connect a compatible smartphone* to the radio and display receiver assembly using a USB cable.

        Tech Tips

        *: This function is not available if the smartphone is not compliant with MirrorLinkTMof Car Connectivity Consortium.

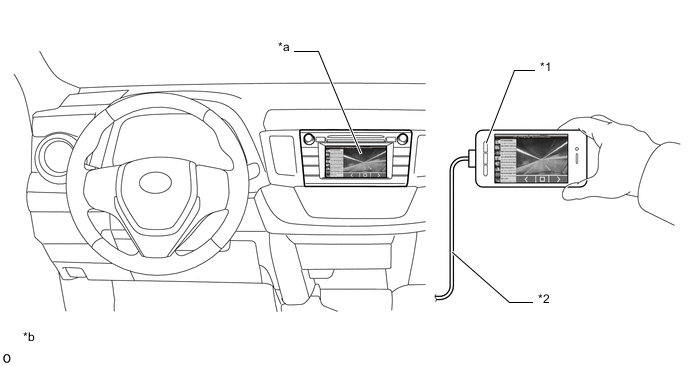

      2. After a connection is established, the screen of the smartphone is displayed on the radio and display receiver assembly. Using this screen, the user can operate applications installed on the smartphone and listen to the audio of the smartphone via the vehicle speakers. Operation via the smartphone is also possible.

        A01VDGPC01
        *1 Smartphone *2 Connection via USB Cable
        *a

        MirrorLinkTMScreen

        		 *b The illustration shows an example.
