CLEARANCE WARNING BUZZER REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Click here

  2. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY

    Click here

  3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Click here

  4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH

    Click here

  5. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH

    Click here

  6. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

    Click here

  7. REMOVE CONSOLE BOX CARPET

    Click here

  8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Click here

  9. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

    Click here

  10. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

    Click here

  11. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click hereClick here

  12. REMOVE NO. 1 CLEARANCE WARNING BUZZER

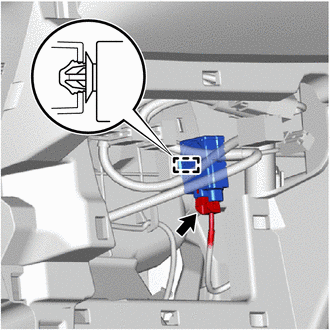

    1. B437830

      Detach the clamp and remove the No. 1 clearance warning buzzer.

    2. Disconnect the connector.
