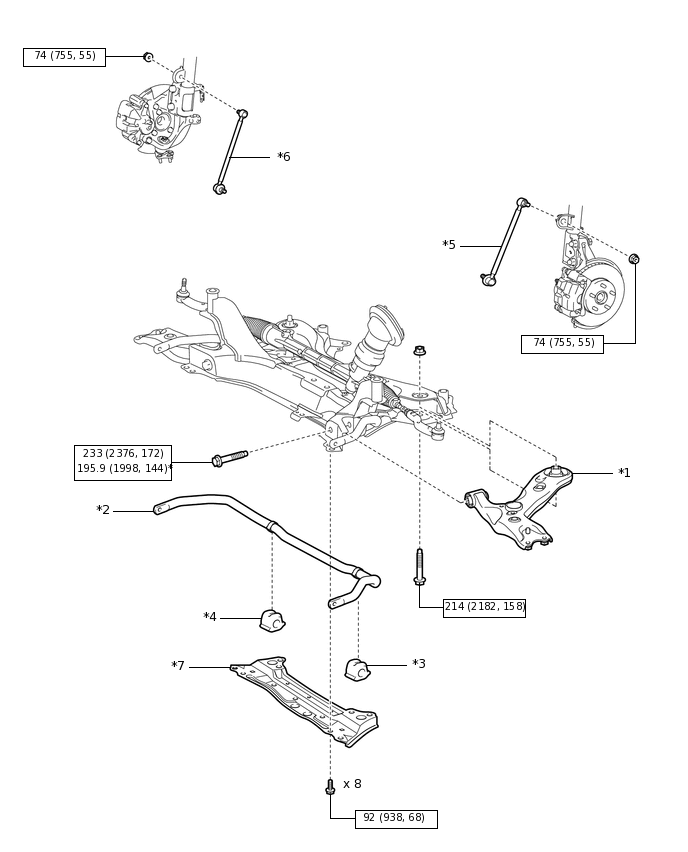

FRONT STABILIZER BAR COMPONENTS
ILLUSTRATION
*1 |
FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY LH |
*2 |
FRONT STABILIZER BAR |
*3 |
FRONT STABILIZER BAR BUSHING LH |
*4 |
FRONT STABILIZER BAR BUSHING RH |
*5 |
FRONT STABILIZER LINK ASSEMBLY LH |
*6 |
FRONT STABILIZER LINK ASSEMBLY RH |
*7 |
FRONT SUSPENSION MEMBER BRACE |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
