SFI SYSTEM(w/ Canister Pump Module), Diagnostic DTC:P0101

DTC Code DTC Name
P0101 Mass Air Flow Circuit Range / Performance Problem

DESCRIPTION

Refer to DTC P0102.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

P0101

Mass Air Flow Circuit Range / Performance Problem

All of the following conditions continue for more than 10 seconds (2 trip detection logic):

(a) The engine is running.

(b) The engine coolant temperature is 70°C (158°F) or higher.

(c) The throttle position sensor voltage is 0.2 V or higher, and less than 2 V.

(d) Average engine load value ratio is less than 0.85, or higher than 1.15 (varies with estimated engine load).

Average engine load value ratio = Average engine load based on mass air flow meter sub-assembly output / Average engine load estimated from driving conditions

(e) Average air fuel ratio is less than -20%, or higher than 20%

  • Mass air flow meter sub-assembly

  • Intake system

  • PCV hose connections

  • EGR valve assembly

Comes on

DTC stored

MONITOR DESCRIPTION

The mass air flow meter sub-assembly is a sensor that measures the amount of air flowing through the throttle valve. The ECM uses this information to determine fuel injection timing and to provide an appropriate air fuel ratio. Inside the mass air flow meter sub-assembly, there is a heated platinum wire which is exposed to the flow of intake air. By applying a specific electrical current to the wire, the ECM heats it to a specific temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to the mass air flow meter sub-assembly. The voltage level is proportional to the airflow through the sensor, and the ECM uses it to calculate the intake air volume.

The ECM monitors the average engine load value ratio to check the mass air flow meter sub-assembly for malfunctions. The average engine load value ratio is obtained by comparing the average engine load calculated from the mass air flow meter sub-assembly output to the average engine load estimated from the driving conditions, such as the engine speed and the throttle opening angle. If the average engine load value ratio is below the threshold value, the ECM determines that the intake air volume is low, and if the average engine load value ratio is above the threshold value, the ECM determines that the intake air volume is high.

If this is detected in 2 consecutive driving cycles, the MIL is illuminated and this DTC is stored.

MONITOR STRATEGY

Required Sensors/Components (Main)

Mass air flow meter sub-assembly

Required Sensors/Components (Related)

Crankshaft position sensor

Camshaft position sensor

Engine coolant temperature sensor

Throttle position sensor

Frequency of Operation

Continuous

CONFIRMATION DRIVING PATTERN

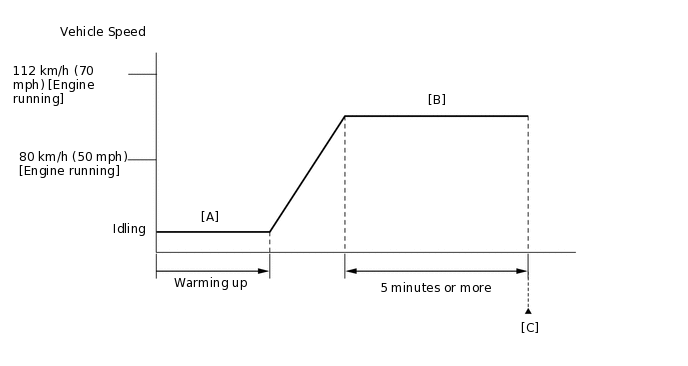

A198820E22

  1. Connect the GTS to the DLC3.

  2. Turn the power switch on (IG).

  3. Turn the GTS on.

  4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

  5. Turn the power switch off and wait for at least 30 seconds.

  6. Turn the power switch on (IG) and turn the GTS on.

  7. Put the engine in inspection mode (maintenance mode).

    Click here

  8. Start the engine and warm it up until the engine coolant temperature reaches 70°C (158°F) or higher [A].

  9. With the engine running, drive the vehicle at approximately 80 km/h (50 mph) to 112 km/h (70 mph) for 5 minutes or more [B].

    CAUTION:

    When performing the confirmation driving pattern, obey all speed limits and traffic laws.

    Tip:

    • Drive while keeping the engine load as stable as possible.

    • If the engine stops, further depress the accelerator pedal to restart the engine.

  10. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].

  11. Read the pending DTCs.

    Tip:

    • If a pending DTC is output, the system is malfunctioning.

    • If a pending DTC is not output, perform the following procedure.

  12. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

  13. Input the DTC: P0101.

  14. Check the DTC judgment result.

    GTS Display

    Description

    NORMAL

    • DTC judgment completed

    • System normal

    ABNORMAL

    • DTC judgment completed

    • System abnormal

    INCOMPLETE

    • DTC judgment not completed

    • Perform driving pattern after confirming DTC enabling conditions

    N/A

    • Unable to perform DTC judgment

    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
    Tip:

    • If the judgment result shows NORMAL, the system is normal.

    • If the judgment result shows ABNORMAL, the system has a malfunction.

    • If the judgment result shows INCOMPLETE or N/A, perform steps [B] and [C] again.

WIRING DIAGRAM

Refer to DTC P0102.

Click here

CAUTION / NOTICE / HINT

Tip:

Read freeze frame data using the GTS. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

  1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0101)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

    5. Read the DTCs.

      Powertrain > Engine and ECT > Trouble Codes

      Result

      Result

      Proceed to

      DTC P0101 is output

      A

      DTC P0101 and other DTCs are output

      B
      Tip:

      If any DTCs other than P0101 are output, troubleshoot those DTCs first.

    B

    GO TO DTC CHART

    Click here

    A

  2. CHECK INTAKE SYSTEM

    1. Check the intake system for vacuum leaks.

      Click here

      OK

      No leaks from intake system.

      Tip:

      Perform "Inspection After Repair" after repairing or replacing the intake system.

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE INTAKE SYSTEM

    OK

  3. CHECK PCV HOSE CONNECTIONS

    1. Check the PCV hose connections.

      Click here

      OK

      PCV valve and hose are connected correctly and are not damaged.

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE PCV HOSE

    OK

  4. PERFORM ACTIVE TEST USING GTS (CONTROL THE EGR STEP POSITION)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Put the engine in inspection mode (maintenance mode).

      Powertrain > Hybrid Control > Utility

      Tester Display

      Inspection Mode

    5. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

      Tip:

      The A/C switch and all accessory switches should be off.

    6. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the EGR Step Position / Primary / MAP and Throttle Idle Position.

      Powertrain > Engine and ECT > Active Test

      Active Test Display

      Control the EGR Step Position

      Data List Display

      MAP

      Throttle Idle Position

    7. Confirm that the Throttle Idle Position is ON and check the MAP values in the Data List while performing the Active Test.

      Tip:

      • Do not leave the EGR valve open for 10 seconds or more during the Active Test.

      • Be sure to return the EGR valve to step 0 when the Active Test is completed.

      • Do not open the EGR valve 30 steps or more during the Active Test.

      OK

      MAP change in response to EGR step position when Throttle Idle Position is ON in Data List.

      Standard

      -

      EGR Step Position (Active Test)

      0 Steps

      0 to 30 Steps

      MAP

      (Data List)

      (EGR valve is fully closed)

      MAP value is at least +10 kPa (75 mmHg) higher than when EGR valve is fully closed
      Tip:

      • While performing the Active Test, if the increase in the value of MAP is small, the EGR valve assembly may be a malfunctioning.

      • Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of MAP may occur while performing the Active Test. However, the amount that the value of MAP increases will be smaller than normal.

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE MASS AIR FLOW METER SUB-ASSEMBLYClick here

    NG

  5. INSPECT EGR VALVE ASSEMBLY

    1. Remove the EGR valve assembly.

      Click here

    2. Check if the EGR valve is stuck open.

      OK

      EGR valve is tightly closed.

      Tip:

      Perform "Inspection After Repair" after replacing the EGR valve assembly.

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE EGR VALVE ASSEMBLY

    Click here

    OK

  6. REPLACE MASS AIR FLOW METER SUB-ASSEMBLY

    1. Replace the mass air flow meter sub-assembly.

      Click here

      Tip:

      Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.

      Click here

    Result

    Proceed to

    NEXT
    NEXT

  7. CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Turn the GTS on.

    4. Clear the DTCs.

      Powertrain > Engine and ECT > Clear DTCs

    5. Turn the power switch off and wait for at least 30 seconds.

    6. Turn the power switch on (IG).

    7. Turn the GTS on.

    8. Put the engine in inspection mode (maintenance mode).

      Powertrain > Hybrid Control > Utility

      Tester Display

      Inspection Mode

    9. Start the engine and warm it up.

    10. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

    11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

      Powertrain > Engine and ECT > Utility

      Tester Display

      All Readiness

    12. Input the DTC: P0101.

    13. Check the DTC judgment result.

      Result

      GTS Display

      Description

      NORMAL

      • DTC judgment completed

      • System normal

      ABNORMAL

      • DTC judgment completed

      • System abnormal

      INCOMPLETE

      • DTC judgment not completed

      • Perform driving pattern after confirming DTC enabling conditions

      N/A

      • Unable to perform DTC judgment

      • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    Result

    Proceed to

    NEXT
    NEXT

    END
