NAVIGATION SYSTEM Radio Receiver Power Source Circuit

DTC Code DTC Name
Radio Receiver Power Source Circuit

DESCRIPTION

This circuit provides power to the radio and display receiver assembly.

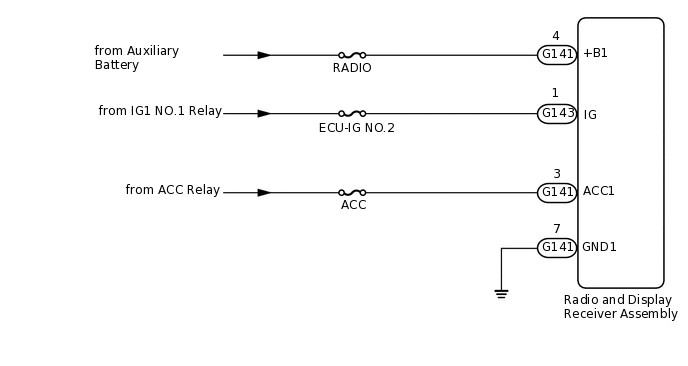

WIRING DIAGRAM

E342276E01

CAUTION / NOTICE / HINT

Note:

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

  • Check that the wire harness is properly installed and does not have any sharp bends, pinching or loose connections.

    Click hereClick hereClick here

PROCEDURE

  1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY - BATTERY AND BODY GROUND)

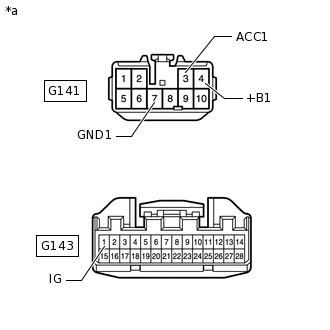

    1. E280967C06

      *a

      Front view of wire harness connector

      (to Radio and Display Receiver Assembly)

      Disconnect the radio and display receiver assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      G141-7 (GND1) - Body ground

      Always

      Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection

      Switch Condition

      Specified Condition

      G141-4 (+B1) - Body ground

      Power switch off

      11 to 14 V

      G141-3 (ACC1) - Body ground

      Power switch on (ACC)

      11 to 14 V

      G143-1 (IG) - Body ground

      Power switch on (IG)

      11 to 14 V

    Result

    Proceed to

    OK

    NG
    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

    Click hereClick hereClick here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
