NOISE FILTER ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT RADIO SETTING CONDENSER

    1. With the radio setting condenser installed, check that there is no looseness or other abnormalities.

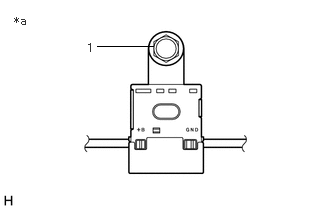

    2. E386541C05

      *a

      Radio Setting Condenser

      Measure the resistance of the radio setting condenser according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - Body ground

      • Ignition switch off

      • Window defogger off

      Below 1 Ω

    3. Remove the bolt.

    4. Detach the 2 clamps and disconnect the radio setting condenser with wire harness from the vehicle body.

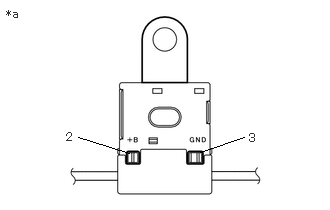

    5. E230106C31

      *a

      Radio Setting Condenser

      Measure the resistance and voltage of the radio setting condenser according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      2 - 3

      • Ignition switch off

      • Window defogger turned off

      10 kΩ or higher

      Standard Voltage

      Tester Connection

      Condition

      Specified Condition

      2 - Body ground

      • Ignition switch ON

      • Window defogger turned off

      Below 1 V

      2 - Body ground

      • Ignition switch ON

      • Window defogger turned on

      11 to 14 V
