WASHER MOTOR COMPONENTS

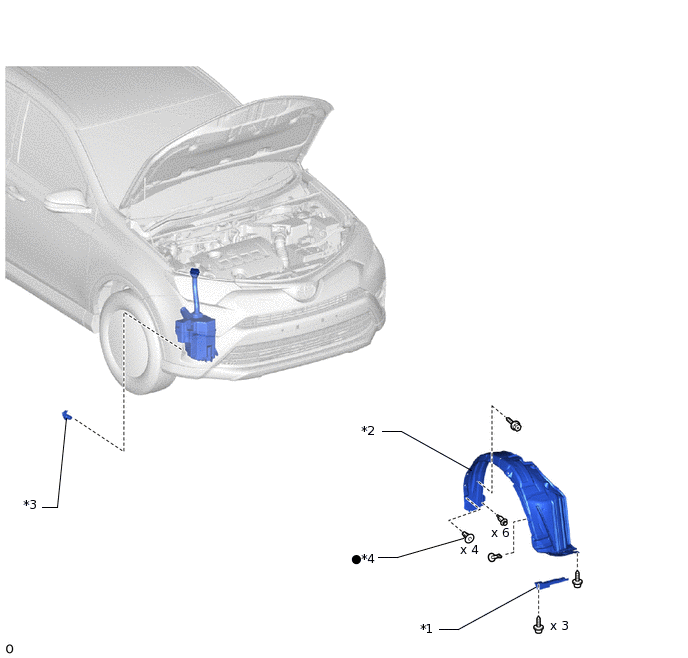

ILLUSTRATION

B427874C01

*1

FRONT FENDER FRONT SPLASH SHIELD RH

*2

FRONT FENDER LINER RH

*3

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

*4

GROMMET

●

Non-reusable part

-

-

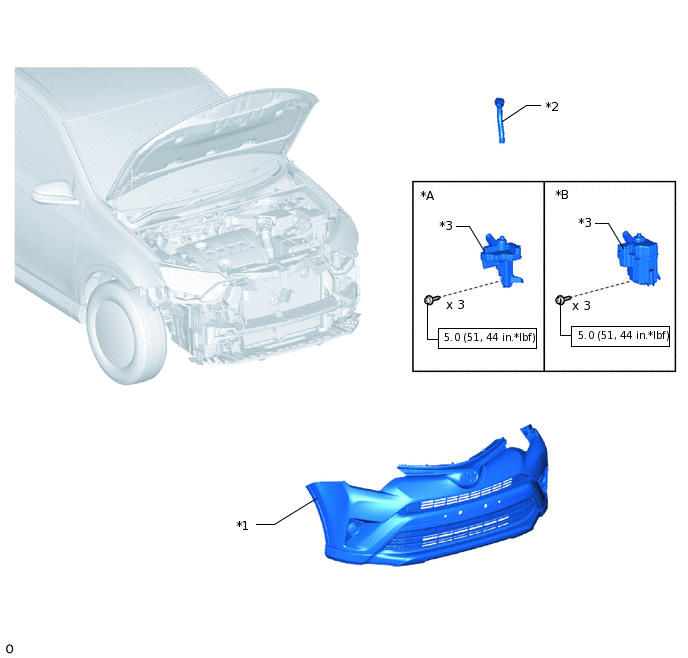

ILLUSTRATION

B427875C01

*A

for 2.5 L Wsher jar

*B

for 4.8 L Wsher jar

*1

FRONT BUMPER COVER

*2

WASHER INLET SUB-ASSEMBLY

*3

WINDSHIELD WASHER JAR ASSEMBLY

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

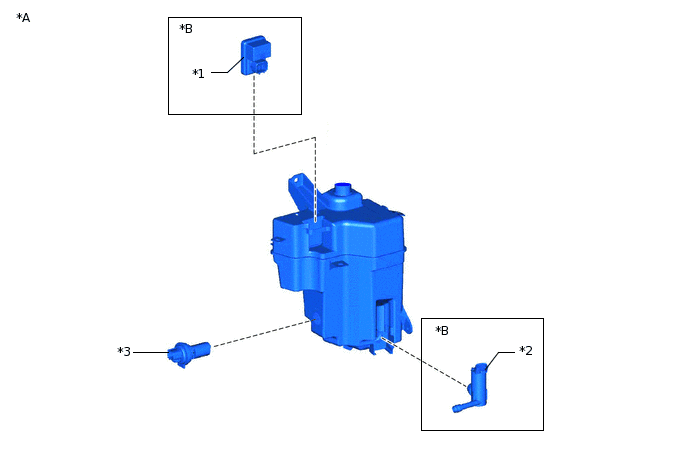

ILLUSTRATION

B427953C01

*A

for 4.8 L Wsher jar

*B

w/ Headlight Cleaner System

*1

HEADLIGHT CLEANER CONTROL RELAY

*2

HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY

*3

LEVEL WARNING SWITCH ASSEMBLY

-

-
