SIDE TURN SIGNAL LIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE SIDE TURN SIGNAL LIGHT LENS LH

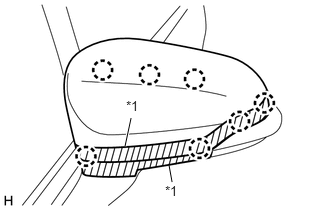

    U124032E02

    1. Put protective tape around the visor cover LH.

      Table 1. Text in Illustration

      *1

      Protective Tape

    2. Detach the 7 claws to remove the visor cover LH.

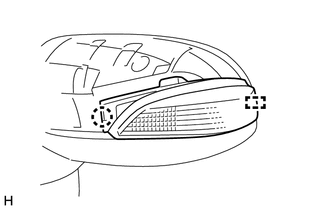

    3. E268853

      Detach the claws and guide.

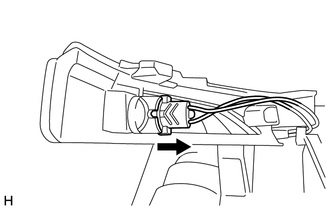

    4. E268854

      Disconnect the side turn signal light bulb socket to remove the side turn signal light lens LH.

  2. REMOVE SIDE TURN SIGNAL LIGHT BULB

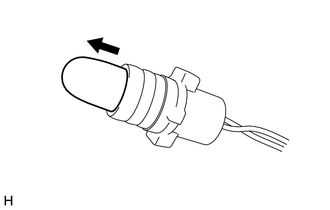

    1. E268856

      Remove the side turn signal light bulb from the side turn signal light bulb socket.
