POWER BACK DOOR TOUCH SENSOR REMOVAL

PROCEDURE

  1. REMOVE BACK DOOR CENTER GARNISH

    Click here

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Click here

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Tip:

    Use the same procedure described for the LH side.

  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Click here

  5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

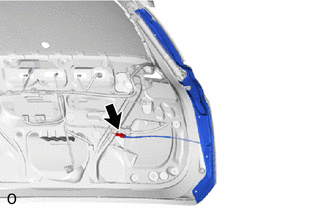

    1. B336838

      Disconnect the connector.

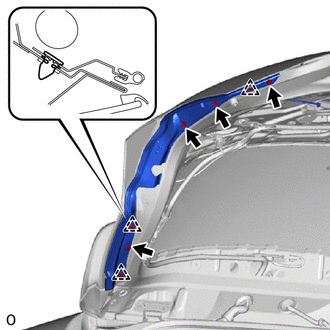

    2. B338179

      Remove the 4 screws.

    3. Detach the 3 clips and remove the power back door sensor assembly LH.

  6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.
