QUARTER WINDOW GLASS COMPONENTS

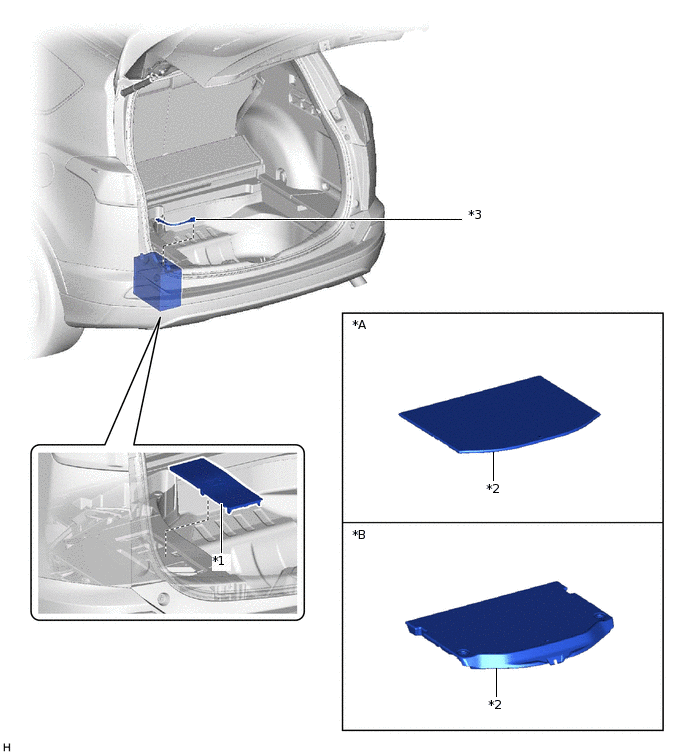

ILLUSTRATION
*A |
for Compact Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |

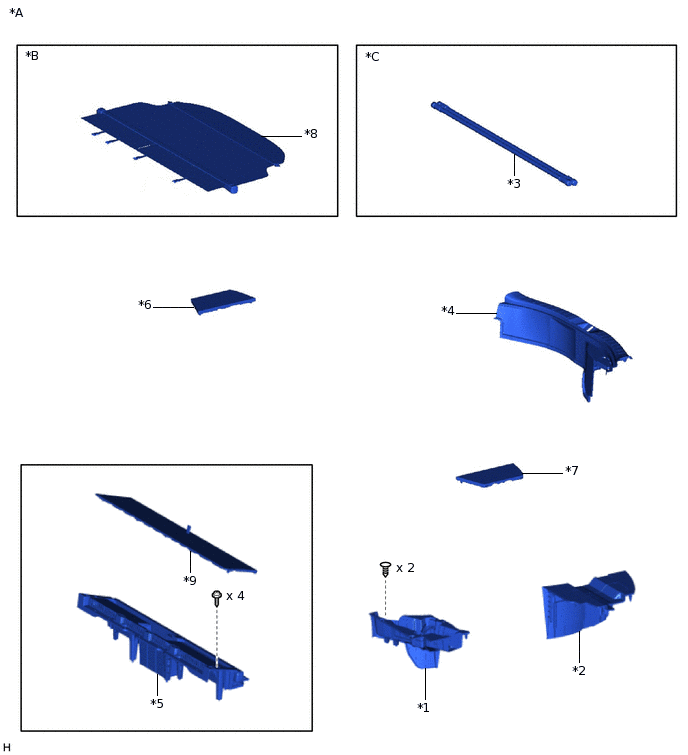

ILLUSTRATION
*A |
w/o Spare Tire, for Compact Spare Tire |
*B |
w/ Tonneau Cover |
*C |
w/ Partition Net |
- |
- |
*1 |
DECK FLOOR BOX LH |
*2 |
DECK TRIM SIDE COVER BASE LH |
*3 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*4 |
REAR FLOOR FINISH PLATE |
*5 |
REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE |
*6 |
REAR NO. 2 FLOOR BOARD |
*7 |
REAR NO. 3 FLOOR BOARD |
*8 |
TONNEAU COVER ASSEMBLY |
*9 |
REAR NO. 1 FLOOR BOARD |
- |
- |

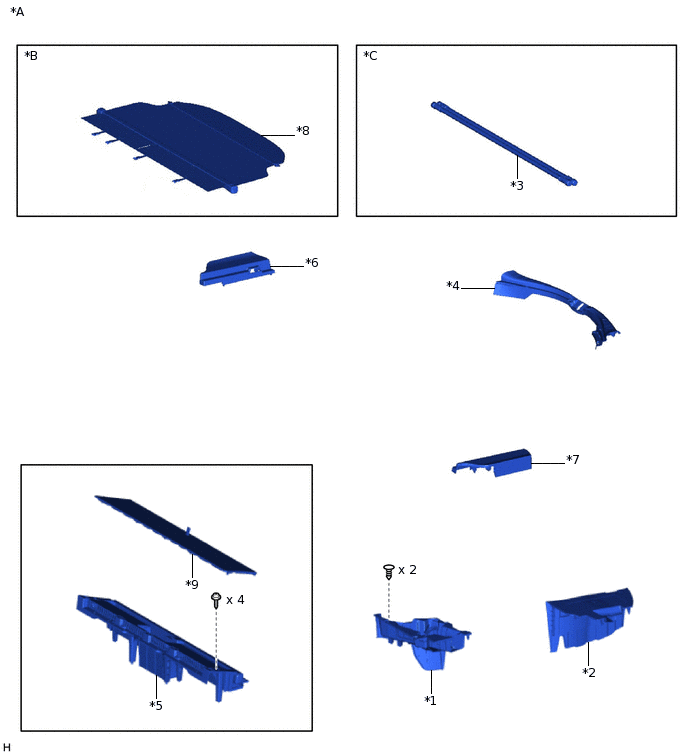

ILLUSTRATION
*A |
for Full Size Spare Tire |
*B |
w/ Tonneau Cover |
*C |
w/ Partition Net |
- |
- |
*1 |
DECK FLOOR BOX LH |
*2 |
DECK TRIM SIDE COVER BASE LH |
*3 |
PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY |
*4 |
REAR DECK TRIM COVER |
*5 |
REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE |
*6 |
REAR NO. 2 FLOOR BOARD |
*7 |
REAR NO. 3 FLOOR BOARD |
*8 |
TONNEAU COVER ASSEMBLY |
*9 |
REAR NO. 1 FLOOR BOARD |
- |
- |

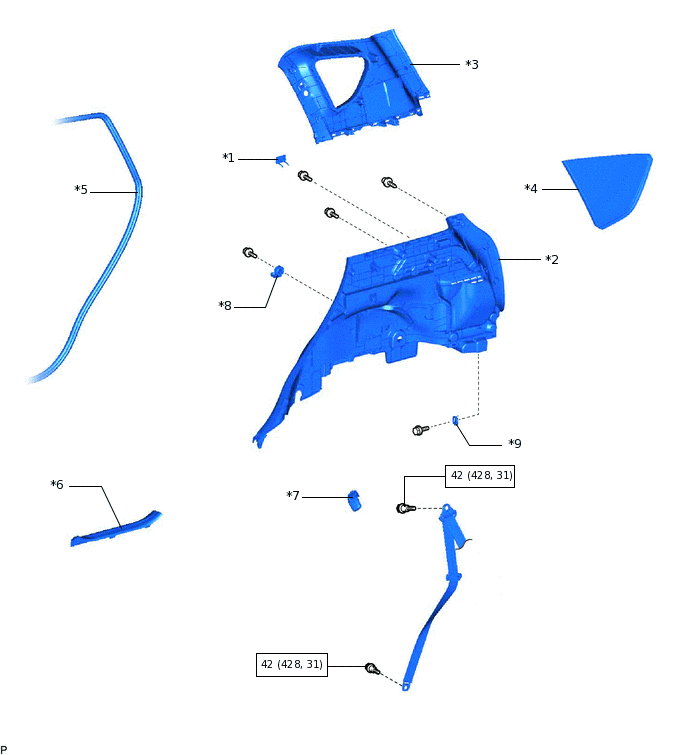

ILLUSTRATION
*1 |
DECK TRIM SERVICE HOLE COVER |
*2 |
DECK TRIM SIDE PANEL ASSEMBLY LH |
*3 |
INNER ROOF SIDE GARNISH ASSEMBLY LH |
*4 |
QUARTER WINDOW ASSEMBLY LH |
*5 |
REAR DOOR OPENING TRIM WEATHERSTRIP LH |
*6 |
REAR DOOR SCUFF PLATE LH |
*7 |
SEAT BELT ANCHOR COVER CAP |
*8 |
TETHER ANCHOR SET BRACKET COVER |
*9 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
