PARKING BRAKE SWITCH REMOVAL

PROCEDURE

1. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

   Click here

2. REMOVE PARKING BRAKE SWITCH ASSEMBLY

   1. Disconnect the parking brake switch connector.

   2.

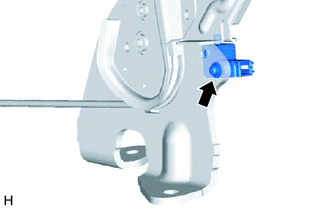

      Remove the screw and parking brake switch assembly.
