OUTER REAR VIEW MIRROR GLASS INSPECTION

PROCEDURE

  1. INSPECT OUTER MIRROR RH

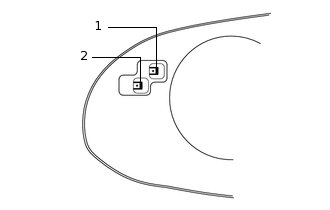

    1. B336512N01

      Check the outer mirror heater operation.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 - 2

        25°C (77°F)

        12.0 to 15.0 Ω

        If the result is not as specified, replace the outer mirror RH.

  2. INSPECT OUTER MIRROR LH

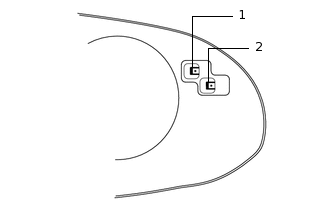

    1. B336513N01

      Check the outer mirror heater operation.

      1. Measure the resistance according the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 - 2

        25°C (77°F)

        12.0 to 15.0 Ω

        If the result is not as specified, replace the outer mirror LH.
