EXHAUST SYSTEM


  1. CONSTRUCTION


    1. The exhaust pipes are made of stainless steel for increased rust resistance.

    2. A three-way catalyst is used for the center exhaust pipe assembly*1 or front exhaust pipe assembly*2, helping to reduce emissions.

      *1: Except EURO VId-TEMP and CHINA VI models

      *2: CHINA VI models

    3. A ball joint is used to join the exhaust manifold converter sub-assembly to the front exhaust pipe assembly, and center exhaust pipe assembly to the tail exhaust pipe assembly. As a result, in-vehicle sound has been muffled, vibration has been minimized, and weight reduction has been achieved.

      Figure 1. Except EURO VId-TEMP and CHINA VI Models

      B007WGRC01
      *1 Gasket *2 Front Exhaust Pipe Assembly
      *3 TWC *4 Center Exhaust Pipe Assembly
      *5 Main Muffler *6 Tail Exhaust Pipe Assembly
      *7 Sub Muffler - -
      *a Ball Joint Portion - -

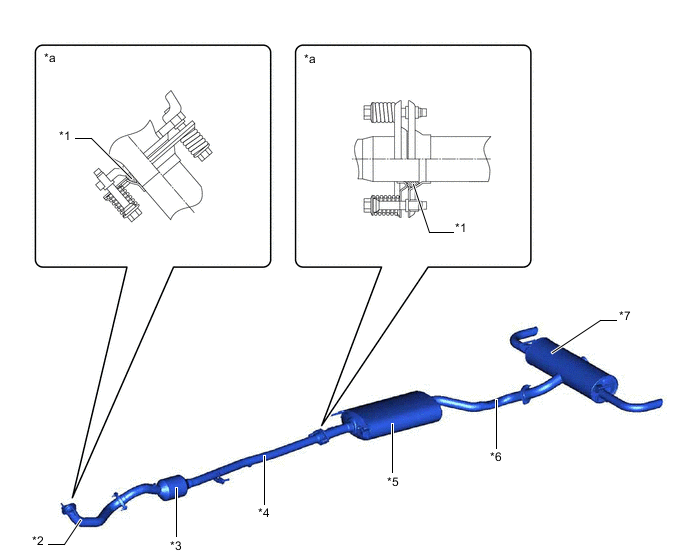

      Figure 2. EURO VId-TEMP Models

      B007WICC01
      *1 Gasket *2 Front Exhaust Pipe Assembly
      *3 GPF *4 Center Exhaust Pipe Assembly
      *5 Main Muffler *6 Tail Exhaust Pipe Assembly
      *7 Sub Muffler - -
      *a Ball Joint Portion - -

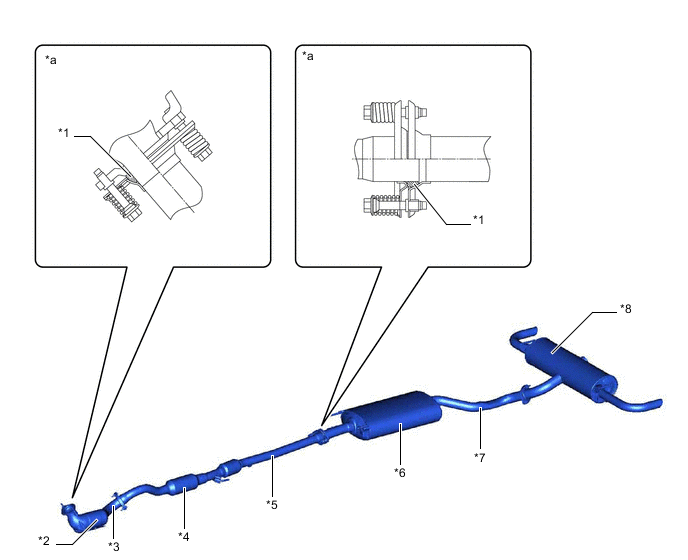

      Figure 3. CHINA VI Models

      B007WGAC01
      *1 Gasket *2 TWC
      *3 Front Exhaust Pipe Assembly *4 No. 2 Sub Muffler
      *5 Center Exhaust Pipe Assembly *6 Main Muffler
      *7 Tail Exhaust Pipe Assembly *8 Sub Muffler
      *a Ball Joint Portion - -
