SEAT BELT WARNING SYSTEM(w/ Occupant Classification System) PARTS LOCATION

*1	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (SKID CONTROL ECU)	*2	NO. 1 ENGINE ROOM RELAY BLOCK
*3	ECU-B NO.2 FUSE	-	-

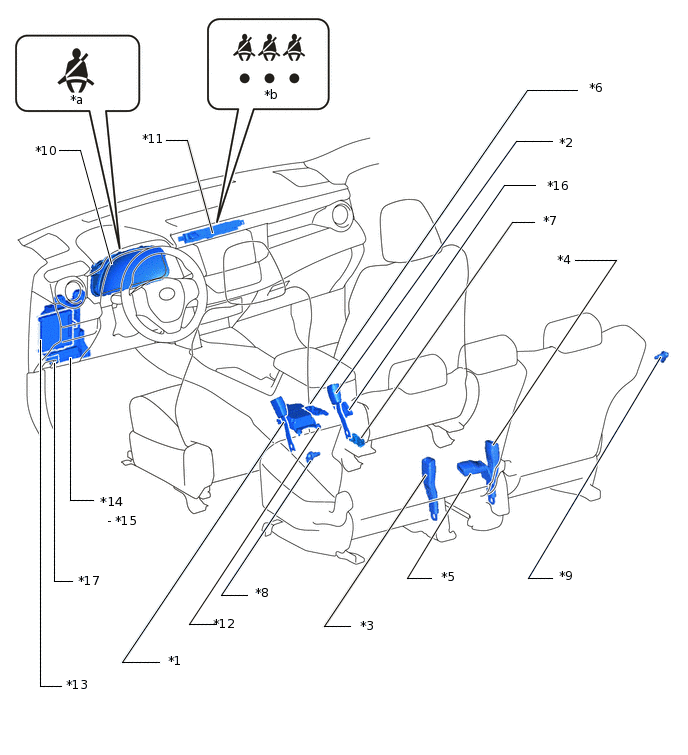

*1	FRONT SEAT INNER BELT ASSEMBLY LH	*2	FRONT SEAT INNER BELT ASSEMBLY RH
*3	REAR SEAT INNER BELT ASSEMBLY LH	*4	REAR SEAT INNER BELT ASSEMBLY RH
*5	REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH	*6	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*7	REAR OCCUPANT CLASSIFICATION SENSOR LH	*8	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*9	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*10	COMBINATION METER ASSEMBLY
*11	TELLTALE LIGHT ASSEMBLY	*12	AIRBAG SENSOR ASSEMBLY
*13	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*14	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
*15	METER FUSE	*16	OCCUPANT DETECTION ECU
*17	DLC3	-	-
*a	FRONT SEAT BELT WARNING LIGHT	*b	REAR SEAT BELT WARNING LIGHT

*1

FRONT SEAT INNER BELT ASSEMBLY LH

*2

FRONT SEAT INNER BELT ASSEMBLY RH

*3

REAR SEAT INNER BELT ASSEMBLY LH

*4

REAR SEAT INNER BELT ASSEMBLY RH

*5

REAR CENTER SEAT LAP TYPE BELT ASSEMBLY RH

*6

FRONT OCCUPANT CLASSIFICATION SENSOR LH

*7

REAR OCCUPANT CLASSIFICATION SENSOR LH

*8

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH

*9

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH

*10

COMBINATION METER ASSEMBLY

*11

TELLTALE LIGHT ASSEMBLY

*12

AIRBAG SENSOR ASSEMBLY

*13

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*14

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

*15

METER FUSE

*16

OCCUPANT DETECTION ECU

*17

DLC3

-

*a

FRONT SEAT BELT WARNING LIGHT

*b

REAR SEAT BELT WARNING LIGHT
