EXHAUST SYSTEM


  1. CONSTRUCTION


    1. The exhaust pipe uses 2 ball joints in order to achieve a simple construction and ensured reliability.

    2. The TWC is used to reduce exhaust emissions.

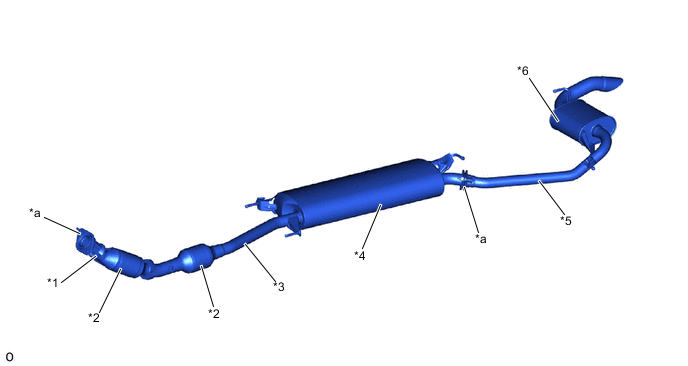

      A01GGLCC01
      *1 Front Exhaust Pipe Assembly *2 TWC
      *3 Center Exhaust Pipe Assembly *4 Main Muffler
      *5 Tail Exhaust Pipe Assembly *6 Sub Muffler
      *a Ball Joint - -

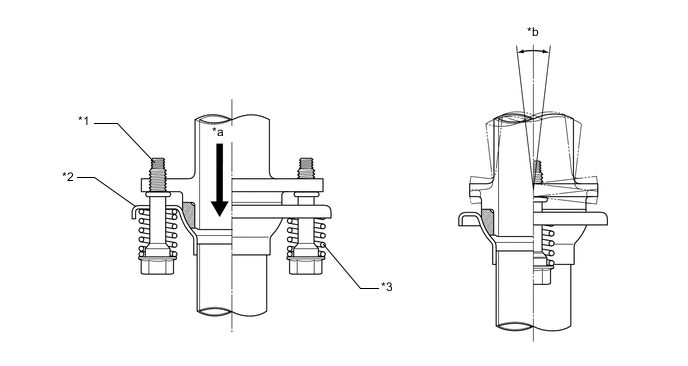

      A01GGB2C06
      *1 Flange Bolt *2 Flange
      *3 Compression Spring - -
      *a Exhaust Gas Flow *b Swing
