VEHICLE APPROACHING SPEAKER INSPECTION

PROCEDURE

  1. INSPECT VEHICLE APPROACHING SPEAKER ASSEMBLY

    1. E220216C21

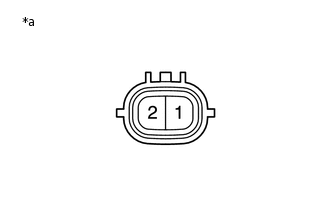

      *a

      Component without harness connected

      (Vehicle Approaching Speaker Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 - 2

      Always

      6.4 to 9.6 Ω
      Tip:

      Make sure that there are no problems such as looseness or play with the installation of the vehicle approaching speaker assembly.If the result is not as specified, replace the vehicle approaching speaker assembly.
