WIPER SWITCH INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the RH side.

PROCEDURE

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

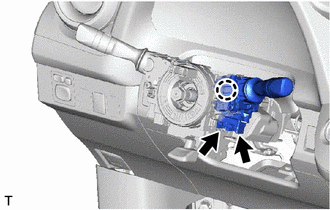

    1. E268399

      Attach the claw to install the windshield wiper switch assembly.

    2. Connect the 2 connectors.

      Note:

      Do not push the claw with excessive force as damage may occur.

  2. INSTALL STEERING COLUMN COVER

    Click here

  3. INSTALL STEERING WHEEL ASSEMBLY

    Click here

  4. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

  5. INSPECT STEERING WHEEL CENTER POINT

  6. INSTALL STEERING PAD ASSEMBLY

    Click here

  7. INSTALL LOWER NO. 2 STEERING WHEEL COVER

    Click here

  8. CONNECT CABLE TO AUXILIARY BATTERY NEGATIVE TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  9. INSTALL BATTERY SERVICE COVER

    Click here

  10. INSTALL DECK BOARD ASSEMBLY

    Click here

  11. INSPECT STEERING PAD ASSEMBLY

    Click here

  12. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  13. CHECK SRS WARNING LIGHT

    Click here
