FRONT SEAT ASSEMBLY COMPONENTS

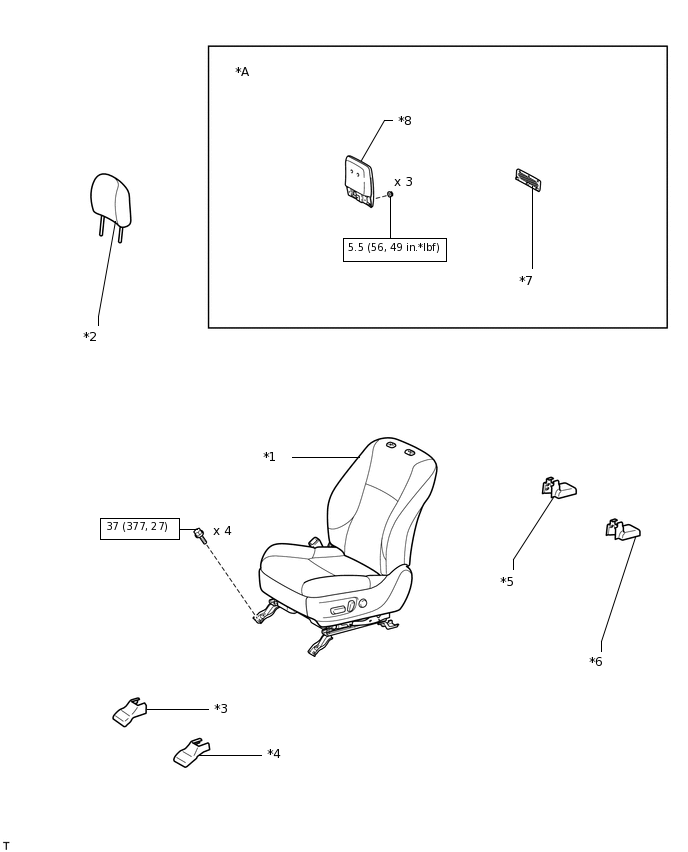

ILLUSTRATION
*A |
w/ Rear Seat Entertainment System |
- |
- |
*1 |
FRONT SEAT ASSEMBLY |
*2 |
FRONT SEAT HEADREST ASSEMBLY |
*3 |
FRONT SEAT INNER TRACK BRACKET COVER LH |
*4 |
FRONT SEAT OUTER TRACK BRACKET COVER LH |
*5 |
INNER SEAT TRACK BRACKET COVER LH |
*6 |
SEAT TRACK COVER LH |
*7 |
TELEVISION BASE |
*8 |
TELEVISION DISPLAY ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

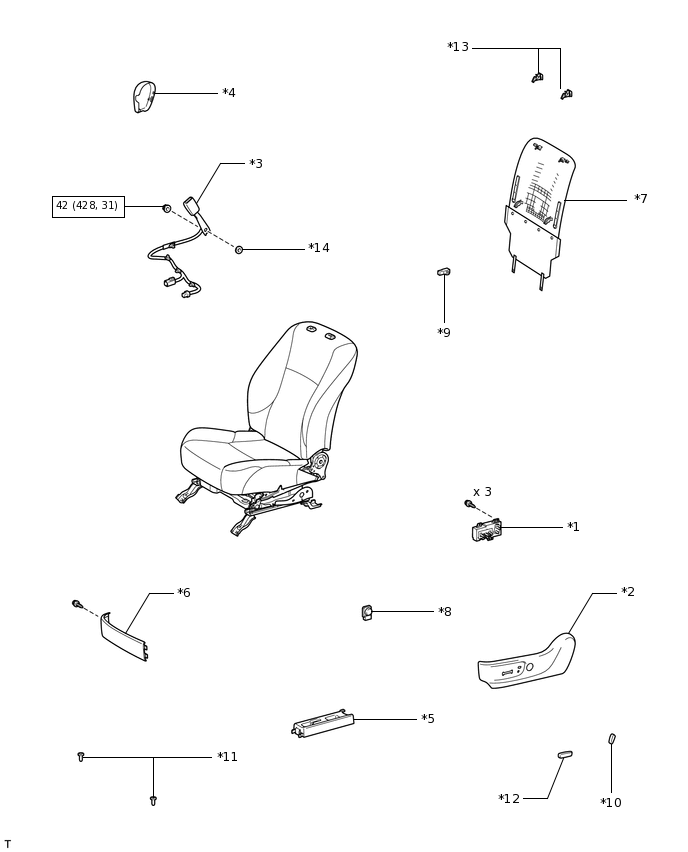

ILLUSTRATION
*1 |
FRONT POWER SEAT SWITCH LH |
*2 |
FRONT SEAT CUSHION SHIELD LH |
*3 |
FRONT SEAT INNER BELT ASSEMBLY LH |
*4 |
FRONT SEAT INNER CUSHION SHIELD LH |
*5 |
FRONT SEAT LEG COVER LH |
*6 |
FRONT SEAT NO. 1 INNER CUSHION SHIELD LH |
*7 |
FRONT SEATBACK BOARD SUB-ASSEMBLY LH |
*8 |
LUMBAR SWITCH ASSEMBLY |
*9 |
NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY |
*10 |
RECLINING POWER SEAT SWITCH KNOB |
*11 |
SEAT ADJUSTER COVER CAP |
*12 |
SLIDE AND VERTICAL POWER SEAT SWITCH KNOB |
*13 |
FRONT SEATBACK BOARD CLIP |
*14 |
FRONT SEAT BELT ANCHOR PLATE |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

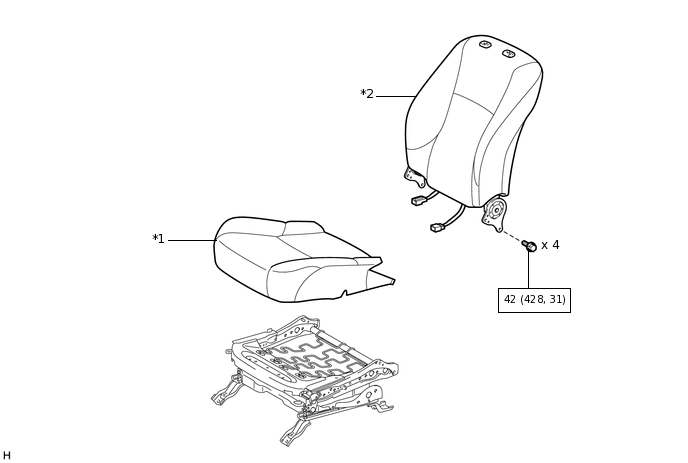

ILLUSTRATION
*1 |
SEAT CUSHION COVER WITH PAD |
*2 |
SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

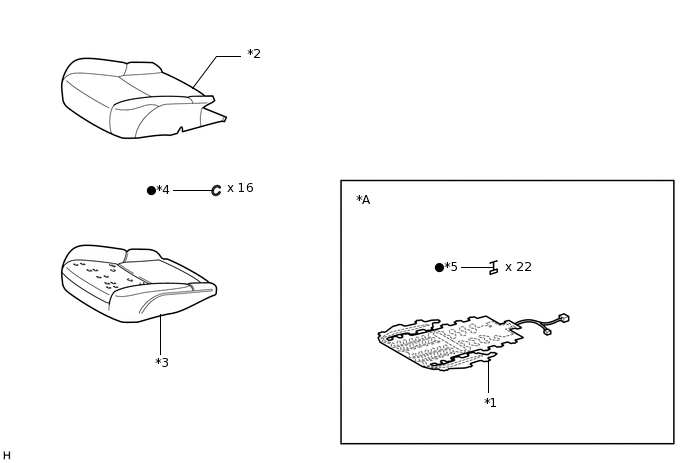

ILLUSTRATION
*A |
w/ Seat Heater System |
- |
- |
*1 |
FRONT SEAT CUSHION HEATER ASSEMBLY LH |
*2 |
SEPARATE TYPE FRONT SEAT CUSHION COVER |
*3 |
SEPARATE TYPE FRONT SEAT CUSHION PAD |
*4 |
HOG RING |
*5 |
TACK PIN |
- |
- |
● |
Non-reusable part |
- |
- |

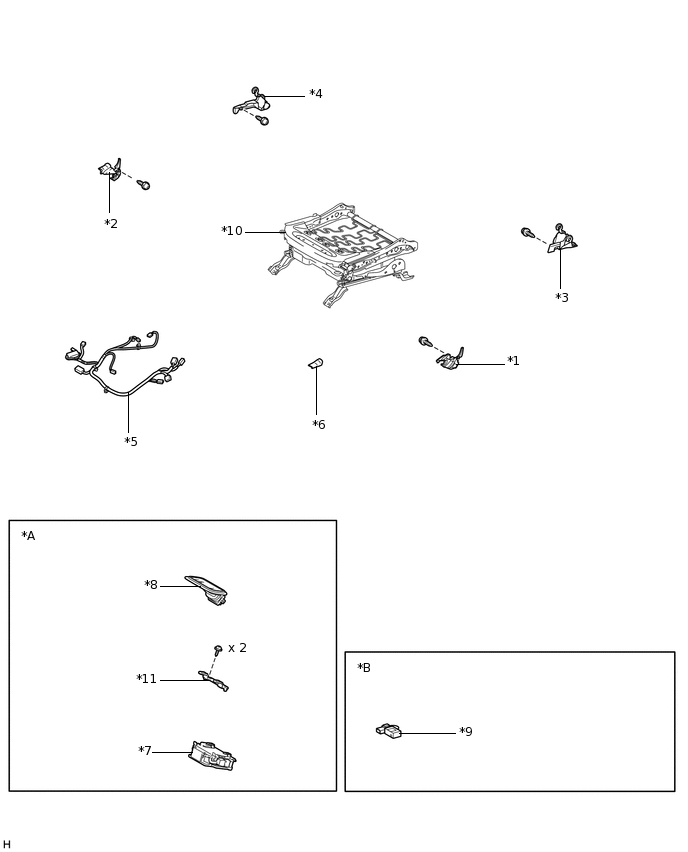

ILLUSTRATION
*A |
w/ Climate Control Seat System |
*B |
w/ Seat Heater System |
*1 |
FRONT SEAT CUSHION EDGE PROTECTOR LH |
*2 |
FRONT SEAT CUSHION EDGE PROTECTOR RH |
*3 |
FRONT SEAT LOWER CUSHION SHIELD LH |
*4 |
FRONT SEAT LOWER CUSHION SHIELD RH |
*5 |
FRONT SEAT WIRE LH |
*6 |
RECLINING ADJUSTER INSIDE COVER LH |
*7 |
SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY LH |
*8 |
SEAT CUSHION CLIMATE CONTROL DUCT |
*9 |
SEAT HEATER CONTROL SUB-ASSEMBLY LH |
*10 |
SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |
*11 |
SEAT CUSHION CLIMATE CONTROL BRACKET |
- |
- |

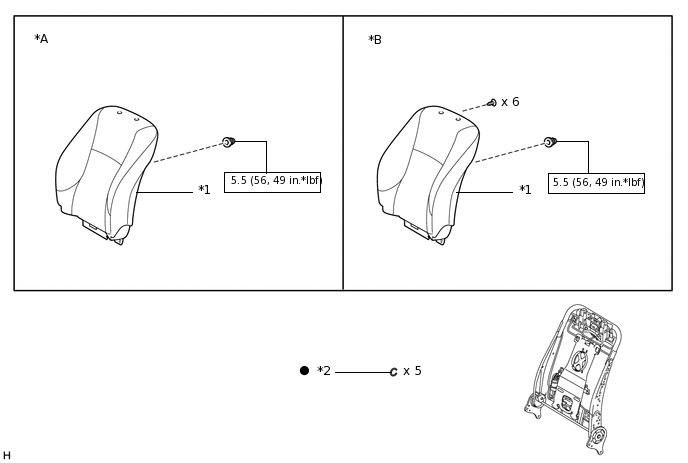

ILLUSTRATION
*A |
w/o Rear Seat Entertainment System |
*B |
w/ Rear Seat Entertainment System |
*1 |
SEATBACK COVER WITH PAD |
*2 |
HOG RING |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

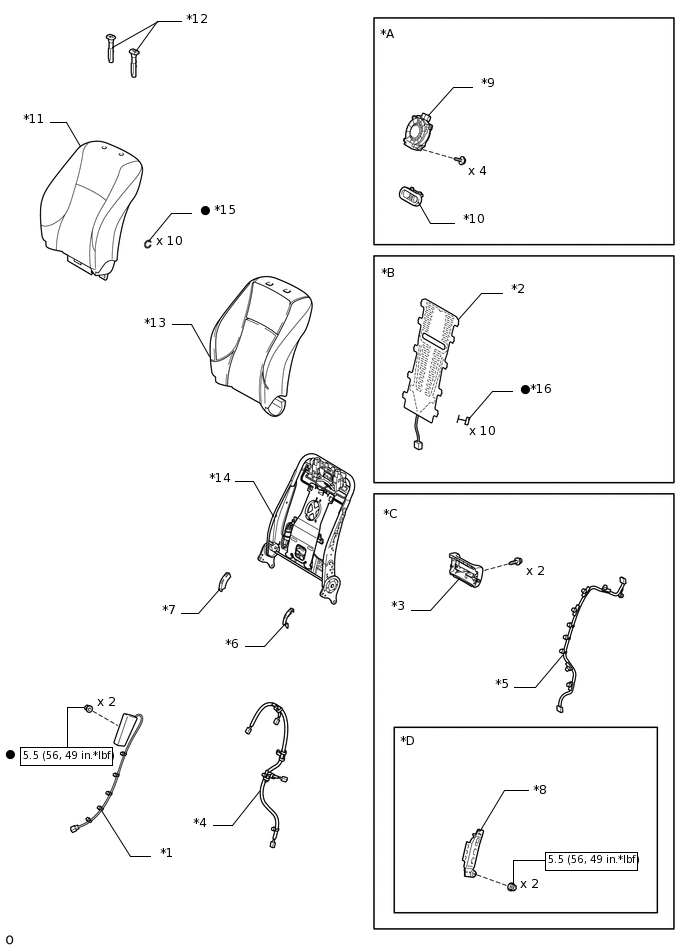

ILLUSTRATION
*A |
w/ Climate Control Seat System |
*B |
w/ Seat Heater System |
*C |
w/ Rear Seat Entertainment System |
*D |
for Front Passenger Side |
*1 |
FRONT SEAT AIRBAG ASSEMBLY LH |
*2 |
FRONT SEATBACK HEATER ASSEMBLY LH |
*3 |
NO. 1 TELEVISION BASE |
*4 |
NO. 2 SEAT WIRE |
*5 |
REAR SEAT WIRE LH |
*6 |
RECLINING ADJUSTER INSIDE COVER LH |
*7 |
RECLINING ADJUSTER INSIDE COVER RH |
*8 |
SEATBACK SPRING DAMPER RH |
*9 |
SEATBACK CLIMATE CONTROL BLOWER LH |
*10 |
SEATBACK CLIMATE CONTROL DUCT LH |
*11 |
SEPARATE TYPE FRONT SEATBACK COVER |
*12 |
FRONT SEAT HEADREST SUPPORT |
*13 |
SEPARATE TYPE FRONT SEATBACK PAD |
*14 |
SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY |
*15 |
HOG RING |
*16 |
TACK PIN |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
