VEHICLE PROXIMITY NOTIFICATION SYSTEM PARTS LOCATION

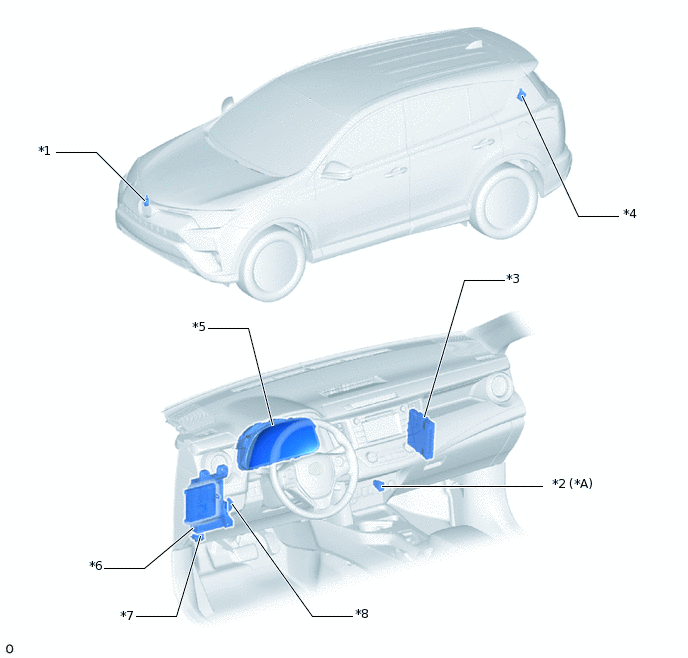

ILLUSTRATION

E341436C01

*A

w/ Vehicle Approaching Speaker Switch

-

-

*1

VEHICLE APPROACHING SPEAKER ASSEMBLY

*2

VEHICLE APPROACHING SPEAKER SWITCH

*3

HYBRID VEHICLE CONTROL ECU

*4

VEHICLE APPROACHING SPEAKER CONTROLLER

*5

COMBINATION METER ASSEMBLY

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

  • - ECU-IG NO.2 FUSE

  • - ECU-IG NO.1 FUSE (w/ Vehicle Approaching Speaker Switch)

*7

DLC3

*8

STOP LIGHT SWITCH ASSEMBLY
