INPUT SHAFT INSPECTION

PROCEDURE

  1. INSPECT INPUT SHAFT

    1. C113554

      Check the input shaft for wear and damage.

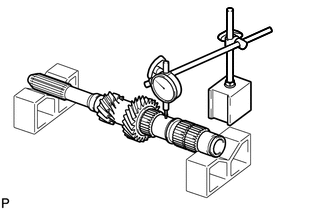

    2. Using a dial indicator, measure the input shaft runout.

      Maximum runout

      0.03 mm (0.00118 in.)

      If the runout is more than the maximum, replace the input shaft.

    3. C112446E02

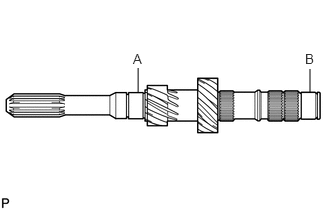

      Using a micrometer, measure the outer diameter of the input shaft journal surface.

      Standard Outer Diameter

      Item

      Specified Condition

      A

      30.008 to 30.020 mm (1.1815 to 1.1818 in.)

      B

      32.002 to 32.018 mm (1.2600 to 1.2604 in.)

      If the outer diameter is less than the minimum, replace the input shaft.
