GLOVE BOX LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Click here

  2. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    Click here

  3. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

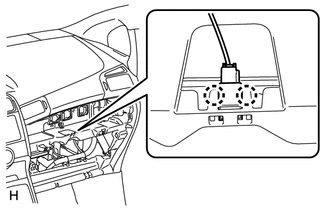

    1. E184176

      Detach the 2 claws and remove the light.

    2. Disconnect the connector.
