ECM INSTALLATION

PROCEDURE

  1. INSTALL ECM

    1. Install the ECM with the 3 nuts.

      Note:

      If the ECM has been struck or dropped, replace it.

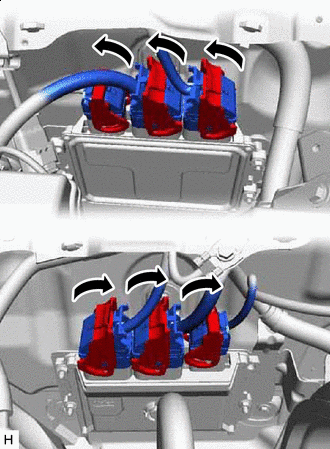

    2. A327467C01

      *A

      for LHD

      *B

      for RHD

      Connect the 3 ECM connectors and lower the 3 levers.

      Note:

      • When connecting the ECM connectors, make sure that dirt, water or other foreign matter does not contact the connecting parts of the ECM connectors.

      • Be sure to securely connect the ECM connectors.

  2. INSTALL BATTERY CLAMP SUB-ASSEMBLY (for RHD)

    Click here

  3. INSTALL BATTERY (for RHD)

    Click here

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick here

  5. PERFORM INITIALIZATION

    Click hereClick here
