TIRE AND WHEEL TYPE SYSTEM GENERAL


  1. OUTLINE


    1. 6 sizes of tire are available.

    2. 5 types of steel disc wheel and 5 types of aluminum disc wheel are available.

    3. A full size spare tire is available.

  2. SPECIFICATION


    1. Tire Size 205/70R15C

      Disc Wheel Size 15 x 6JJ
      Disc Wheel Material Steel
      Pitch Circle Diameter 114.3 mm (4.5 in.)
      Inset 45.0 mm (1.8 in.)
      Wheel Cap Center Ornament
      Wheel Design A01EZCM
      Disc Wheel Size 15 x 6JJ
      Disc Wheel Material Aluminum
      Pitch Circle Diameter 114.3 mm (4.5 in.)
      Inset 45.0 mm (1.8 in.)
      Wheel Cap Center Ornament
      Wheel Design A01EZLE

    2. Tire Size 255/70R15C

      Disc Wheel Size 15 x 7J
      Disc Wheel Material Steel
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 30.0 mm (1.2 in.)
      Wheel Cap Center Ornament

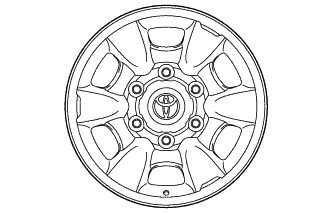

      Wheel Design A01EZEA
      Disc Wheel Size 15 x 7J
      Disc Wheel Material Aluminum
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 30.0 mm (1.2 in.)
      Wheel Cap Center Ornament

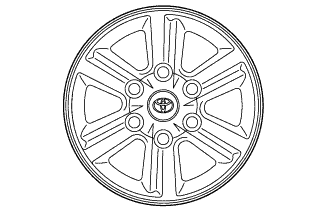

      Wheel Design A01EZNX

    3. Tire Size 205R16C

      Disc Wheel Size 16 x 6J
      Disc Wheel Material Steel
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 45.0 mm (1.8 in.)
      Wheel Cap Center Ornament
      Wheel Design A01EZP0

    4. Tire Size 215/65R16C

      Disc Wheel Size 16 x 6J
      Disc Wheel Material Aluminum
      Pitch Circle Diameter 114.3 mm (4.5 in.)
      Inset 45.0 mm (1.8 in.)
      Wheel Cap Center Ornament
      Wheel Design A01EZJV

    5. Tire Size 225/70R17C

      Disc Wheel Size 17 x 6J
      Disc Wheel Material Steel
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 50.0 mm (1.97 in.)
      Wheel Cap Center Ornament

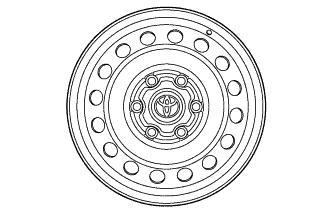

      Wheel Design A01EZH8

    6. Tire Size 265/65R17

      Disc Wheel Size 17 x 71/2J
      Disc Wheel Material Steel
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 30.0 mm (1.2 in.)
      Wheel Cap Center Ornament
      Wheel Design A01EZH8
      Disc Wheel Size 17 x 71/2J
      Disc Wheel Material Aluminum
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 30.0 mm (1.2 in.)
      Wheel Cap Center Ornament

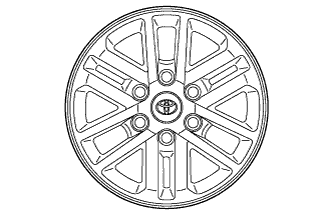

      Wheel Design A01EZPT
      Disc Wheel Size 17 x 71/2J
      Disc Wheel Material Aluminum
      Pitch Circle Diameter 139.7 mm (5.5 in.)
      Inset 30.0 mm (1.2 in.)
      Wheel Cap Center Ornament

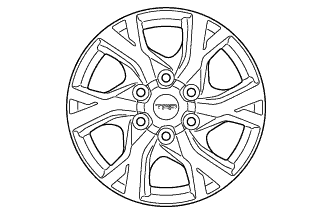

      Wheel Design A01EZCZ
