FRONT LOWER BALL JOINT REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT AXLE ASSEMBLY LH

    Click here

  2. REMOVE FRONT LOWER BALL JOINT ASSEMBLY LH

    1. Secure the front axle assembly between aluminum plates in a vise.

      Note:

      When using a vise, do not overtighten it.

    2. Remove the cotter pin and nut.

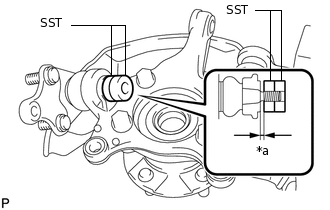

    3. C156924C04

      *a

      1 mm (0.0394 in.)

      Install SST to the front lower ball joint assembly LH as shown in the illustration.

      09960-20010

      09961-02050

      09961-02050

      Note:

      Make sure that the clearance measurement between SST and the front axle assembly is 1 mm (0.0394 in.).

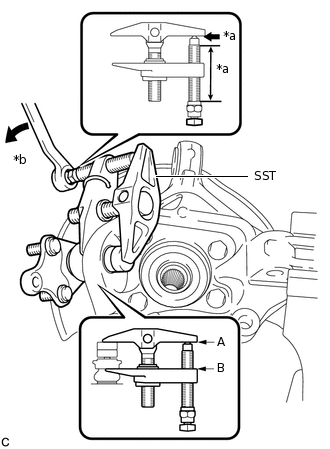

    4. C278704C03

      *a

      Molybdenum Grease Application Area

      *b

      Turn

      Using SST, remove the front lower ball joint assembly LH from the front axle assembly as shown in the illustration.

      09960-20010

      09961-02010

      09961-02050

      09961-02050

      CAUTION:

      Apply molybdenum grease to the bolt threads and the tip of SST.

      Note:

      • Install SST so that A and B are parallel.

      • Be sure to turn the part indicated in the illustration with a wrench.

      • Do not damage the front lower ball joint dust cover.

      • Be sure to tie the string of SST to the vehicle to prevent SST from dropping.
