TIRE PRESSURE WARNING RECEIVER(for Hatchback) COMPONENTS

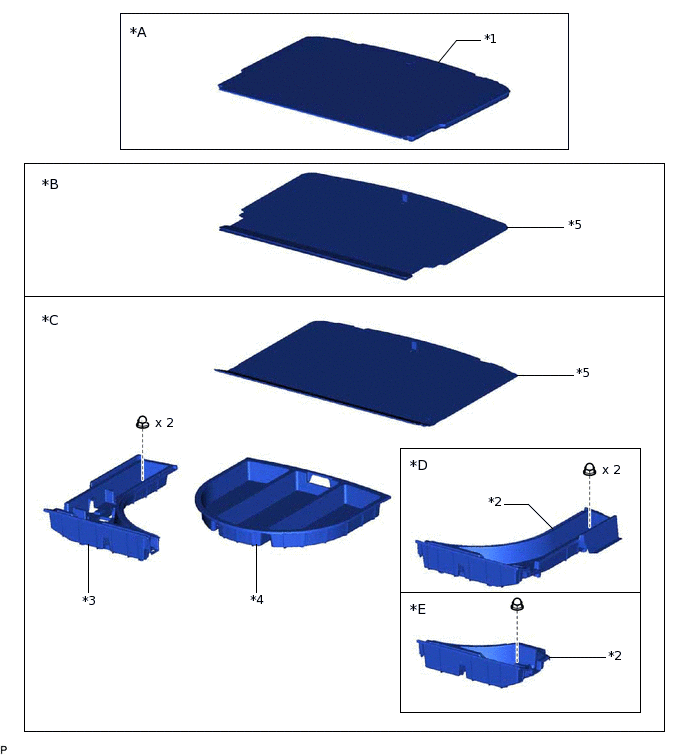

ILLUSTRATION
*A |
w/ Deck Board |
*B |
w/o Deck Floor Box |
*C |
w/ Deck Floor Box |
*D |
w/o Woofer |
*E |
w/ Woofer |
- |
- |
*1 |
DECK BOARD ASSEMBLY |
*2 |
DECK FLOOR BOX LH |
*3 |
DECK FLOOR BOX RH |
*4 |
REAR DECK FLOOR BOX |
*5 |
REAR FLOOR MAT ASSEMBLY |
- |
- |

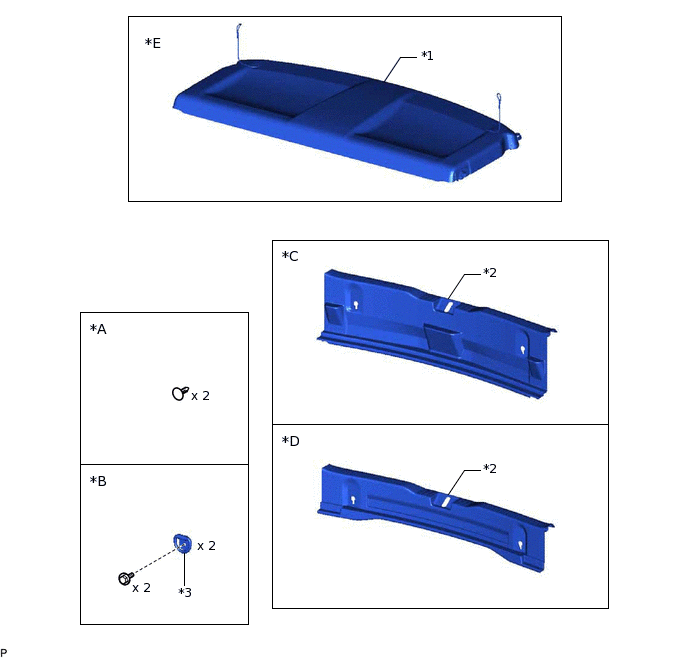

ILLUSTRATION
*A |
for Clip Type |
*B |
for Hook Type |
*C |
w/ Deck Board |
*D |
w/o Deck Board |
*E |
w/ Package Tray Trim |
- |
- |
*1 |
PACKAGE TRAY TRIM PANEL ASSEMBLY |
*2 |
REAR DECK TRIM COVER |
*3 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
- |
- |
ILLUSTRATION

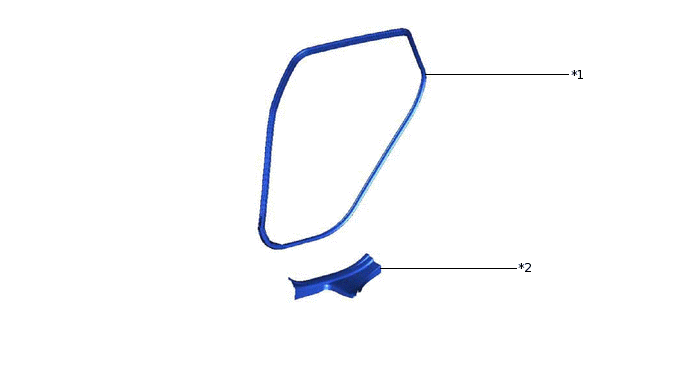

*1 |
REAR DOOR OPENING TRIM WEATHERSTRIP RH |
*2 |
REAR DOOR SCUFF PLATE RH |

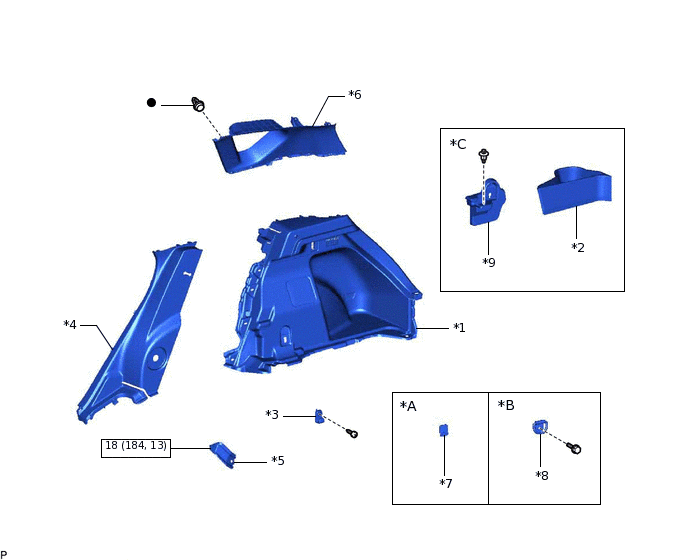

ILLUSTRATION
*A |
for Clip Type |
*B |
for Hook Type |
*C |
w/ Deck Board |
- |
- |
*1 |
DECK TRIM SIDE PANEL ASSEMBLY RH |
*2 |
LOWER DECK TRIM SIDE BOARD RH |
*3 |
NO. 2 DECK SIDE TRIM HOOK |
*4 |
REAR SEAT SIDE GARNISH RH |
*5 |
REAR SEATBACK HINGE SUB-ASSEMBLY RH |
*6 |
ROOF SIDE INNER GARNISH ASSEMBLY RH |
*7 |
DECK TRIM SERVICE HOLE COVER |
*8 |
LUGGAGE HOLD BELT STRIKER ASSEMBLY |
*9 |
DECK SIDE TRIM BOX RH |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

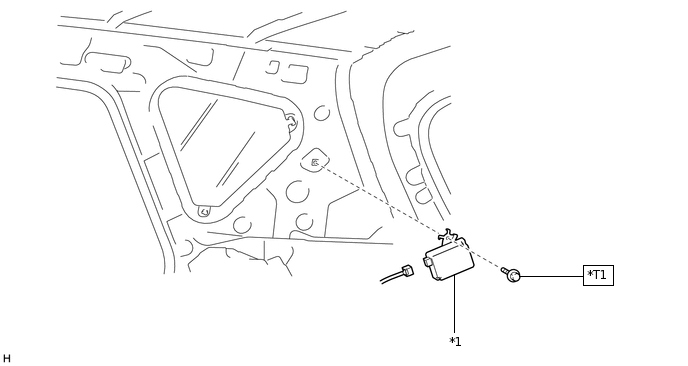

ILLUSTRATION
*1 |
TIRE PRESSURE WARNING ECU AND RECEIVER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
*T1 |
for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
