ENTRY AND START SYSTEM(for Entry Function) Front Passenger Side Door Entry Lock and Unlock Functions do not Operate

DTC Code DTC Name
Front Passenger Side Door Entry Lock and Unlock Functions do not Operate

DESCRIPTION

If the entry lock and unlock functions do not operate for the front passenger door only, the request code may not be being transmitted from the No. 2 indoor electrical key antenna assembly (center pillar RH)*1 or No. 2 indoor electrical key antenna assembly (center pillar LH)*2 or the trigger switch on the front door outside handle assembly (for front passenger door) may be malfunctioning. There may be a problem with request code transmission (communication between the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (center pillar RH)*1 or No. 2 indoor electrical key antenna assembly (center pillar LH)*2, or there may be wave interference.

  • *1: for LHD

  • *2: for RHD

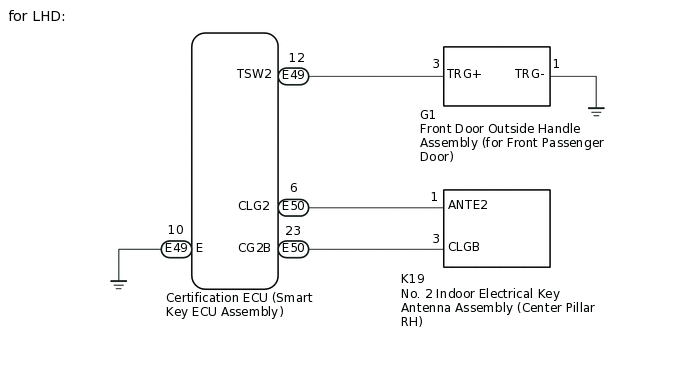

WIRING DIAGRAM

B342593E16
B342593E12

CAUTION / NOTICE / HINT

Note:

  • The entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

    Click here

  • When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

  • Check that there are no electrical key transmitter sub-assemblies in the vehicle.

  • Before performing the inspection, check that DTC B1242 (wireless door lock control) or B27B0 is not output.

  • Before replacing the certification ECU (smart key ECU assembly), refer to entry and start system (for Entry Function) Precaution.

    Click here

  • After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

  1. CHECK POWER DOOR LOCK CONTROL SYSTEM

    1. When the door control switch is operated, check that the doors unlock and lock according to the switch operation.

      Click here

      OK

      Door locks operate normally.

    Result

    Proceed to

    OK

    NG
    NG

    GO TO POWER DOOR LOCK CONTROL SYSTEM

    Click here

    OK

  2. CHECK DTC OUTPUT

    1. Check the DTCs.

      Body Electrical > Entry&Start > Trouble Codes

      OK

      DTC B27A2 is not output.

    Result

    Proceed to

    OK

    NG
    NG

    GO TO DTC B27A2

    Click here

    OK

  3. CHECK WAVE ENVIRONMENT

    1. B361565C01

      *A

      for LHD

      *B

      for RHD

      *a

      Approximately 0.3 m (0.984 ft.)

      Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the front door outside handle assembly (for front passenger door) and perform an entry function check.

      Click hereClick here

      Note:

      If the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the front door outside handle assembly (for front passenger door), communication may not be possible.

      Tip:

      If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

    Result

    Result

    Proceed to

    Entry function does not operate normally

    A

    Entry function operates normally

    B
    B

    AFFECTED BY WAVE INTERFERENCE

    A

  4. READ VALUE USING GTS (P-DOOR TRIGGER SWITCH)

    1. Connect the GTS to the DLC3.

    2. Turn the engine switch on (IG).

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Entry&Start / Data List.

    5. Read the Data List according to the display on the GTS.

      Body Electrical > Entry&Start > Data List

      Tester Display

      Measurement Item

      Range

      Normal Condition

      Diagnostic Note

      P-Door Trigger Switch

      Front passenger door trigger switch

      ON or OFF

      ON: Front passenger door trigger switch pressed

      OFF: Front passenger door trigger switch not pressed

      • Displays whether the trigger switch is on or off (even if the trigger switch is pressed and held, ON is displayed only momentarily).

      • Use this Data List item to help determine if there is a trigger switch malfunction when the entry lock function does not operate.

      Body Electrical > Entry&Start > Data List

      Tester Display

      P-Door Trigger Switch

      OK

      The GTS display changes correctly in response to the operation of the trigger switch.

    Result

    Result

    Proceed to

    OK

    A

    NG (for LHD)

    B

    NG (for RHD)

    C
    B

    CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))Click here

    C

    CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))Click here

    A

  5. CHECK KEY DIAGNOSTIC MODE

    B361565C01

    *A

    for LHD

    *B

    for RHD

    *a

    0.7 to 1 m (2.30 to 3.28 ft.)

    1. Check the following antennas in key diagnostic mode.

    2. Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.

      Tip:

      If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

      1. Check the No. 2 indoor electrical key antenna assembly (center pillar RH)*1 or No. 2 indoor electrical key antenna assembly (center pillar LH)*2:

        When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly (for front passenger door), check that the wireless door lock buzzer sounds.

        • *1: for LHD

        • *2: for RHD

        Body Electrical > Entry&Start > Utility

        Tester Display

        Communication Check(Key Diag Mode)

    Result

    Result

    Proceed to

    Wireless door lock buzzer does not sound (for LHD)

    A

    Wireless door lock buzzer does not sound (for RHD)

    B

    Wireless door lock buzzer sounds

    C
    B

    CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR LH))Click here

    C

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    A

  6. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR RH))

    1. Disconnect the E49 and E50 certification ECU (smart key ECU assembly) connectors.

    2. Disconnect the K19 No. 2 indoor electrical key antenna assembly (center pillar RH) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E50-6 (CLG2) - K19-1 (ANTE2)

      Always

      Below 1 Ω

      E50-23 (CG2B) - K19-3 (CLGB)

      Always

      Below 1 Ω

      E49-10 (E) - Body ground

      Always

      Below 1 Ω

      E50-6 (CLG2) or K19-1 (ANTE2) - Body ground

      Always

      10 kΩ or higher

      E50-23 (CG2B) or K19-3 (CLGB) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  7. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR RH))

    1. Reconnect the E49 and E50 certification ECU (smart key ECU assembly) connectors.

    2. Reconnect the K19 No. 2 indoor electrical key antenna assembly (center pillar RH) connector.

    3. Using an oscilloscope, check the waveform.

      B345002C32

      *a

      Component with harness connected

      (No. 2 Indoor Electrical Key Antenna Assembly (Center Pillar RH))

      *b

      Waveform 1

      *c

      Trigger switch ON

      -

      -

      OK

      Tester Connection

      Condition

      Tool Setting

      Specified Condition

      K19-1 (ANTE2) - K19-3 (CLGB)

      Procedure:

      1. Engine switch off

      2. All doors closed

      -

      No pulse generation

      Procedure:

      1. Engine switch off

      2. All doors closed

      3. While carrying the electrical key transmitter sub-assembly, press the trigger switch on the front door outside handle assembly (for front passenger door)

      2 V/DIV., 500 ms/DIV.

      Pulse generation

      (See waveform 1)

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR RH)

    Click here

    NG

  8. CHECK ENTRY DOOR LOCK OPERATION

    1. Reconnect all connectors.

    2. Check the operation of the entry lock and unlock functions of the front passenger door.

      Click hereClick here

      OK

      Entry lock and unlock functions operate normally.

    Result

    Proceed to

    OK

    NG
    OK

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

  9. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR LH))

    1. Disconnect the E49 and E50 certification ECU (smart key ECU assembly) connectors.

    2. Disconnect the K19 No. 2 indoor electrical key antenna assembly (center pillar LH) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E50-6 (CLG2) - K19-1 (ANTE2)

      Always

      Below 1 Ω

      E50-23 (CG2B) - K19-3 (CLGB)

      Always

      Below 1 Ω

      E49-10 (E) - Body ground

      Always

      Below 1 Ω

      E50-6 (CLG2) or K19-1 (ANTE2) - Body ground

      Always

      10 kΩ or higher

      E50-23 (CG2B) or K19-3 (CLGB) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  10. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR LH))

    1. Reconnect the E49 and E50 certification ECU (smart key ECU assembly) connectors.

    2. Reconnect the K19 No. 2 indoor electrical key antenna assembly (center pillar LH) connector.

    3. Using an oscilloscope, check the waveform.

      B345002C25

      *a

      Component with harness connected

      (No. 2 Indoor Electrical Key Antenna Assembly (Center Pillar LH))

      *b

      Waveform 1

      *c

      Trigger switch ON

      -

      -

      OK

      Tester Connection

      Condition

      Tool Setting

      Specified Condition

      K19-1 (ANTE2) - K19-3 (CLGB)

      Procedure:

      1. Engine switch off

      2. All doors closed

      -

      No pulse generation

      Procedure:

      1. Engine switch off

      2. All doors closed

      3. While carrying the electrical key transmitter sub-assembly, press the trigger switch on the front door outside handle assembly (for front passenger door)

      2 V/DIV., 500 ms/DIV.

      Pulse generation

      (See waveform 1)

    Result

    Proceed to

    Proceed to

    NG

    A

    OK

    B
    B

    REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (CENTER PILLAR LH)

    Click here

    A

  11. CHECK ENTRY DOOR LOCK OPERATION

    1. Reconnect all connectors.

    2. Check the operation of the entry lock and unlock functions of the front passenger door.

      Click hereClick here

      OK

      Entry lock and unlock functions operate normally.

    Result

    Proceed to

    OK

    NG
    OK

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

  12. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))

    1. Disconnect the E49 certification ECU (smart key ECU assembly) connector.

    2. Disconnect the G1 front door outside handle assembly (for front passenger door) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E49-12 (TSW2) - G1-3 (TRG+)

      Always

      Below 1 Ω

      E49-10 (E) - Body ground

      Always

      Below 1 Ω

      G1-1 (TRG-) - Body ground

      Always

      Below 1 Ω

      E49-12 (TSW2) or G1-3 (TRG+) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    OK

    INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  13. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR))

    1. Disconnect the E49 certification ECU (smart key ECU assembly) connector.

    2. Disconnect the H1 front door outside handle assembly (for front passenger door) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      E49-12 (TSW2) - H1-3 (TRG+)

      Always

      Below 1 Ω

      E49-10 (E) - Body ground

      Always

      Below 1 Ω

      H1-1 (TRG-) - Body ground

      Always

      Below 1 Ω

      E49-12 (TSW2) or H1-3 (TRG+) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  14. INSPECT FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

    1. Remove the front door outside handle assembly (for front passenger door).

      Click here

    2. Inspect the front door outside handle assembly (for front passenger door).

      Click here

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

    Click here

    OK

  15. CHECK ENTRY DOOR LOCK OPERATION

    1. Reconnect all connectors.

    2. Check the operation of the entry lock and unlock functions of the front passenger door.

      Click hereClick here

      OK

      Entry lock and unlock functions operate normally.

    Result

    Proceed to

    OK

    NG
    OK

    END (CONNECTOR WAS NOT CONNECTED SECURELY)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
