CURTAIN SHIELD AIRBAG ASSEMBLY COMPONENTS

*A	w/o Spare Tire, for Compact Spare Tire	*B	for Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	AUXILIARY BATTERY NEGATIVE TERMINAL	-	-
	Nm (kgfcm, ft.*lbf) : Specified torque	-	-

*A

w/o Spare Tire, for Compact Spare Tire

*B

for Full Size Spare Tire

*1

BATTERY SERVICE COVER

*2

DECK BOARD ASSEMBLY

*3

AUXILIARY BATTERY NEGATIVE TERMINAL

-

N*m (kgf*cm, ft.*lbf) : Specified torque

-

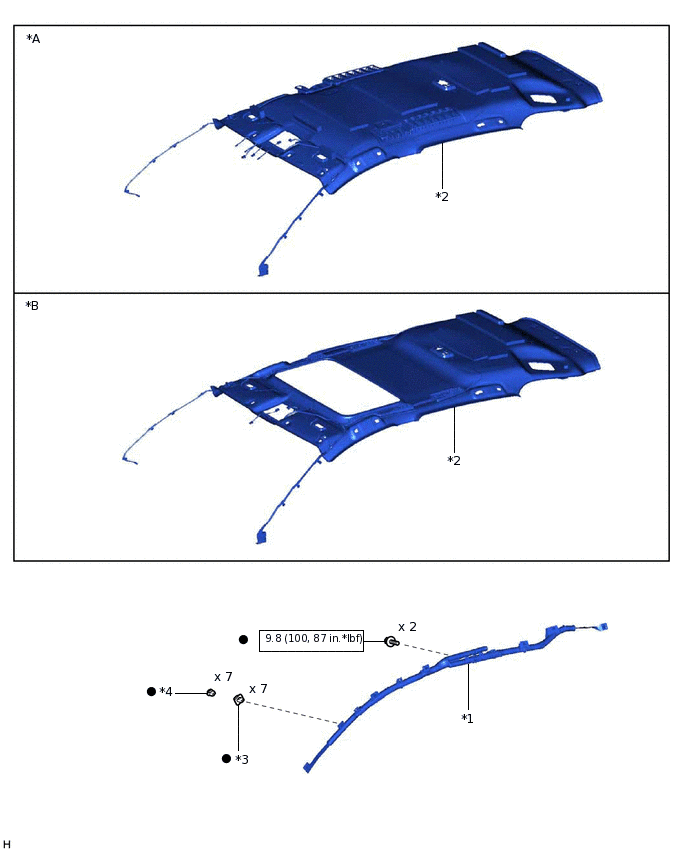

*A	w/o Sliding Roof	*B	w/ Sliding Roof
*1	CURTAIN SHIELD AIRBAG ASSEMBLY LH	*2	ROOF HEADLINING ASSEMBLY
*3	Clip	*4	Pin
	Nm (kgfcm, ft.*lbf) : Specified torque	●	Non-reusable part
