AIRBAG SYSTEM


  1. CONSTRUCTION


    1. The inflator and bag are built into the horn button assembly.

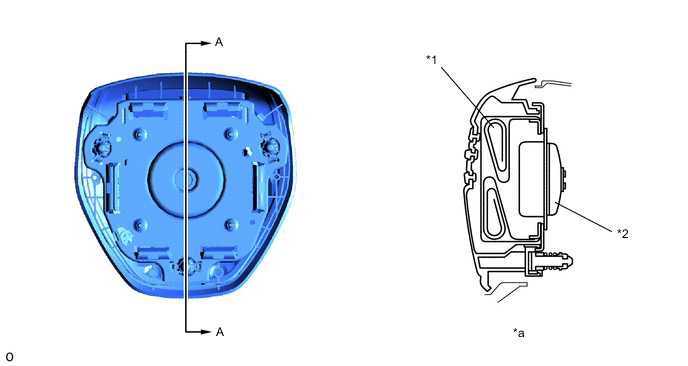

      Figure 1. Except Models for Korea

      A00YYBWC01
      *1 Bag *2 Inflator
      *a A - A Cross Section - -

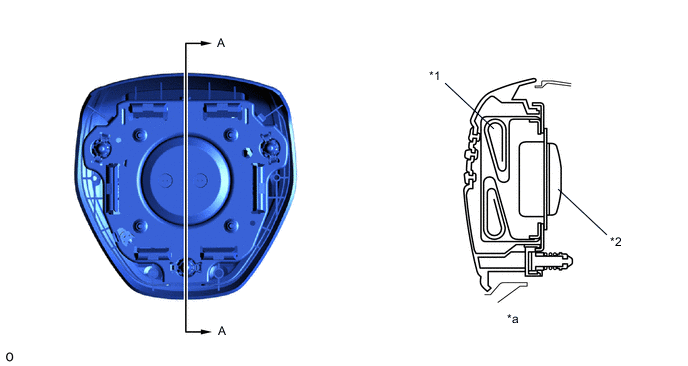

      Figure 2. Models for Korea

      A00YY9GC01
      *1 Bag *2 Inflator
      *a A - A Cross Section - -
