FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) SYSTEM DIAGRAM


  1. for Driver Seat

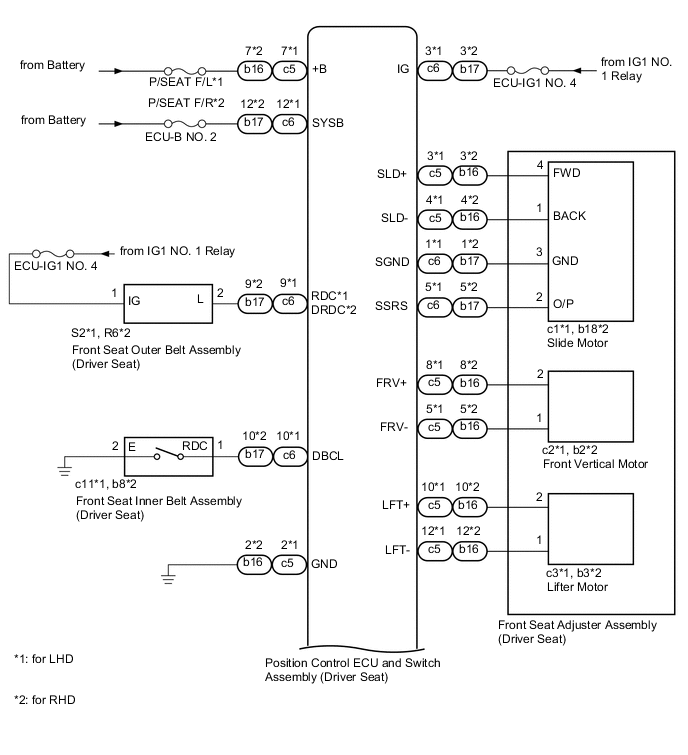

    A01RFU4E04

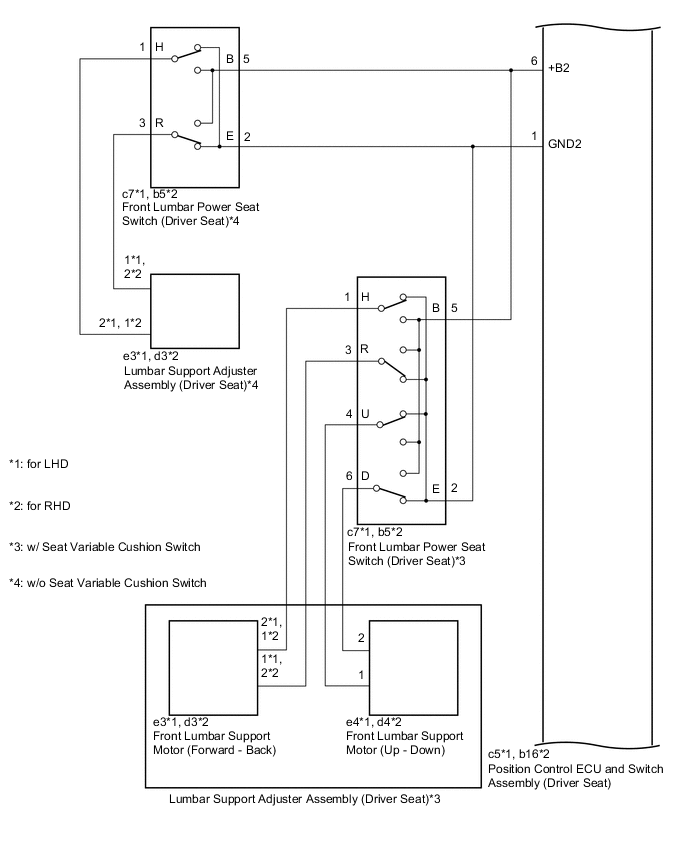

    A01RD6JE12

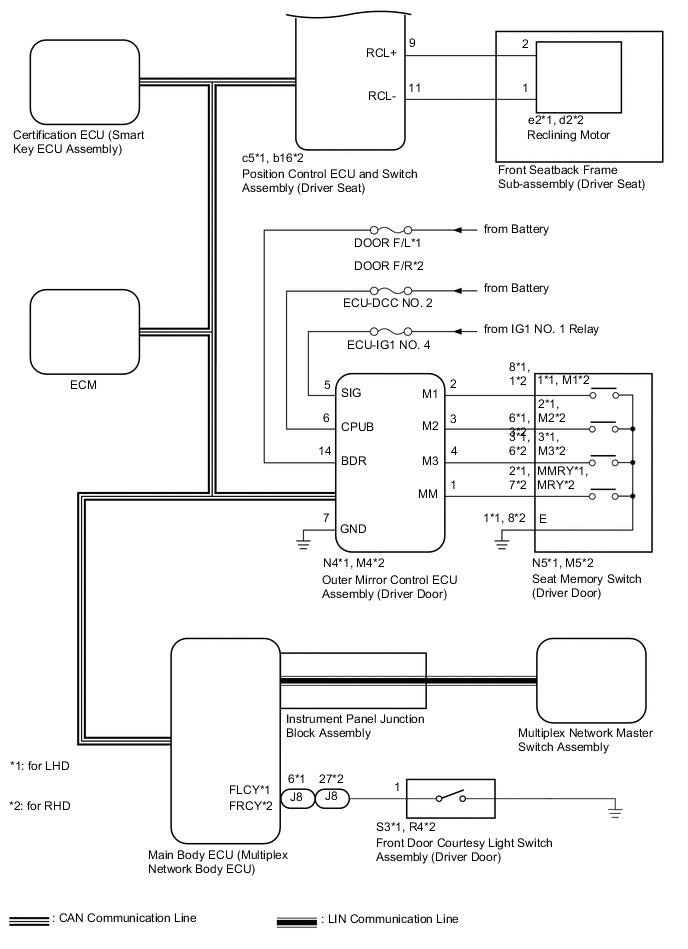

    A01REFGE05

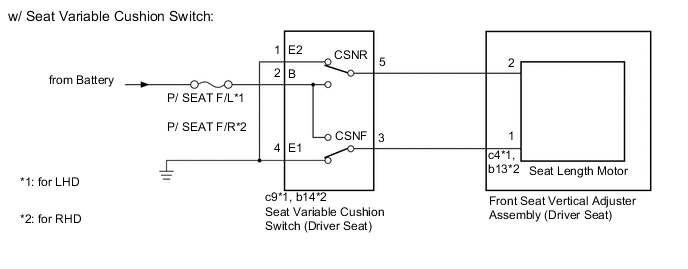

    A01RCZME11
    Communication Table
    Sender Receiver Signal Line
    ECM Main Body ECU (Multiplex Network Body ECU)

    • Transmission information

    • Shift position P signal

    		 CAN
    Outer Mirror Control ECU Assembly (Driver Door) Main Body ECU (Multiplex Network Body ECU)

    • M1 switch signal

    • M2 switch signal

    • M3 switch signal

    • SET switch signal

    		 CAN
    Main Body ECU (Multiplex Network Body ECU) Position Control ECU and Switch Assembly (Driver Seat)

    • Shift position P signal

    • Vehicle speed signal

    • Transmission information

    • Driving position buzzer request

    • Driver seat position request

    • Driver seat position data

    		 CAN
    Certification ECU (Smart Key ECU Assembly) Main Body ECU (Multiplex Network Body ECU)

    • Engine switch signal

    • Memory call replay request

    • Key identification No. 1 to No. 7 acquisition condition

    		 CAN
    Position Control ECU and Switch Assembly (Driver Seat) Main Body ECU (Multiplex Network Body ECU)

    • State signal of driver seat

    • State signal of driving position buzzer

    		 CAN
    Multiplex Network Master Switch Assembly Main Body ECU (Multiplex Network Body ECU) Door control switch signal LIN

  2. for Front Passenger Seat

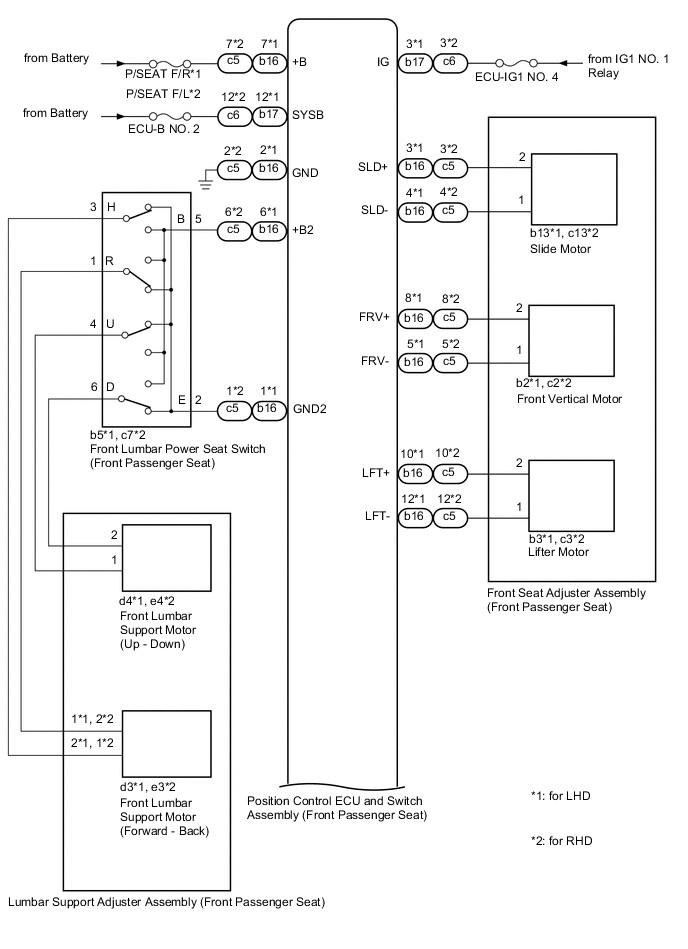

    A01RF57E04

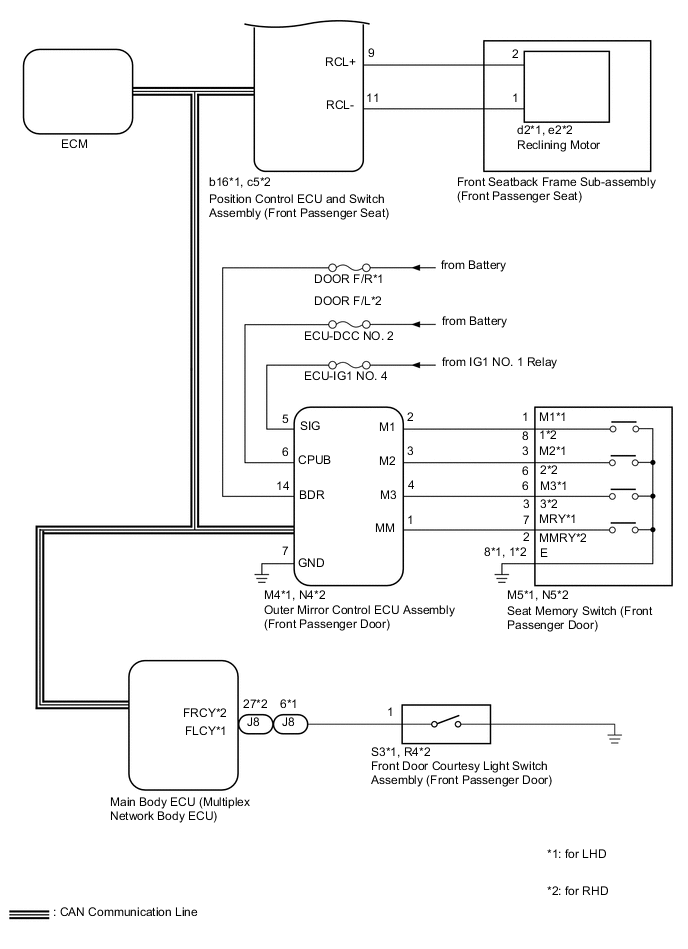

    A01R989E04

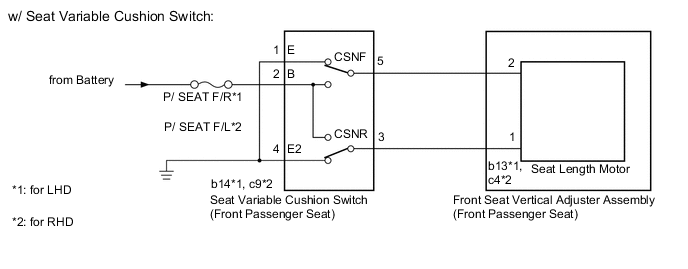

    A01RCZME12
    Communication Table
    Sender Receiver Signal Line
    ECM Main Body ECU (Multiplex Network Body ECU)

    • Transmission information

    • Shift position P signal

    		 CAN
    Outer Mirror Control ECU Assembly (Front Passenger Door) Main Body ECU (Multiplex Network Body ECU)

    • M1 switch signal

    • M2 switch signal

    • M3 switch signal

    • SET switch signal

    		 CAN
    Main Body ECU (Multiplex Network Body ECU) Position Control ECU and Switch Assembly (Front Passenger Seat)

    • Shift position P signal

    • Vehicle speed signal

    • Transmission information

    • Front passenger seat position request

    • Front passenger seat position data

    		 CAN
