REAR SUSPENSION MEMBER COMPONENTS

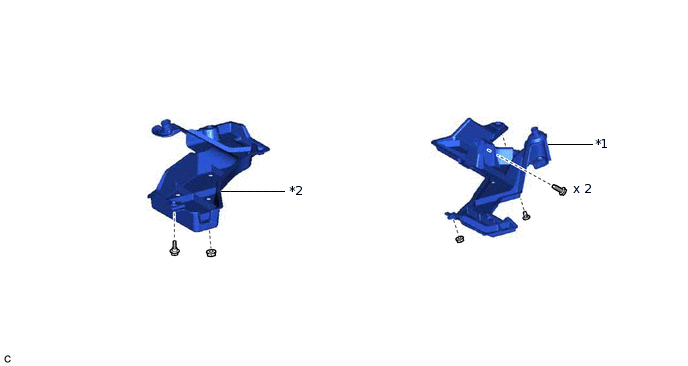

ILLUSTRATION
*1 |
REAR FLOOR SIDE MEMBER COVER LH |
*2 |
REAR FLOOR SIDE MEMBER COVER RH |

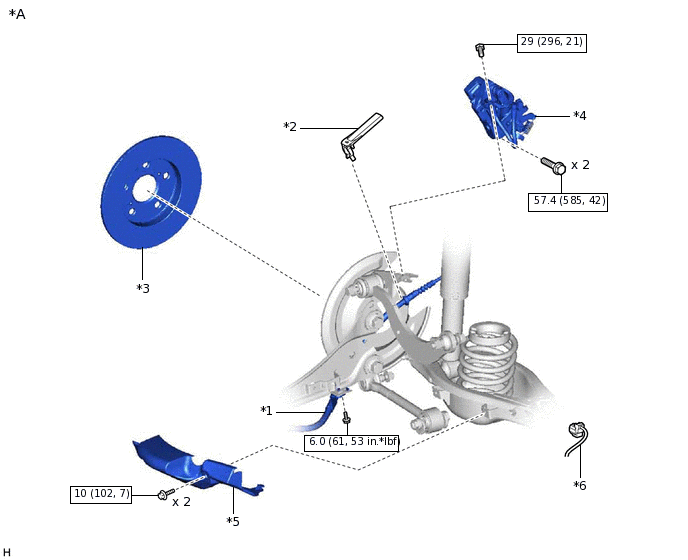

ILLUSTRATION
*A |
for LH Side |
- |
- |
*1 |
NO. 3 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE LEVER PROTECTOR |
*3 |
REAR DISC |
*4 |
REAR DISC BRAKE CALIPER ASSEMBLY LH |
*5 |
REAR SUSPENSION ARM COVER LH |
*6 |
SKID CONTROL SENSOR WIRE LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

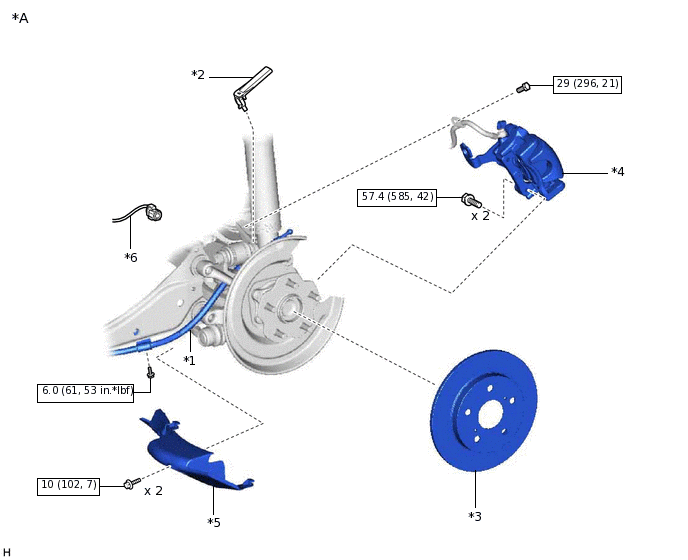

ILLUSTRATION
*A |
for RH Side |
- |
- |
*1 |
NO. 2 PARKING BRAKE CABLE ASSEMBLY |
*2 |
PARKING BRAKE LEVER PROTECTOR |
*3 |
REAR DISC |
*4 |
REAR DISC BRAKE CALIPER ASSEMBLY RH |
*5 |
REAR SUSPENSION ARM COVER RH |
*6 |
SKID CONTROL SENSOR WIRE RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

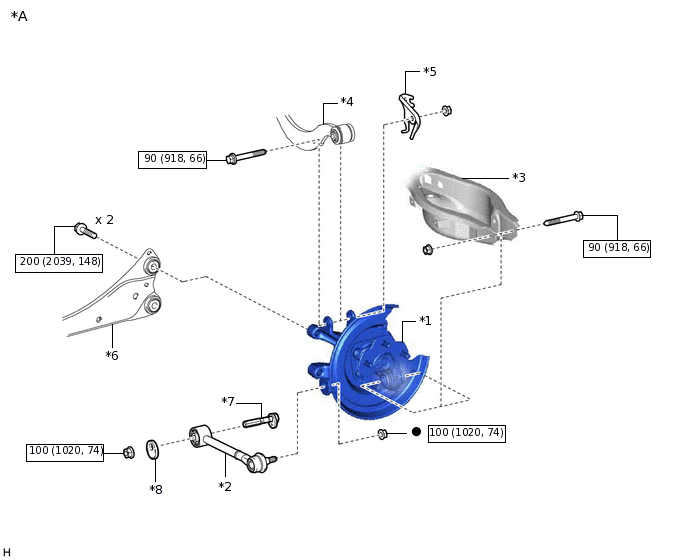

ILLUSTRATION
*A |
for LH Side |
- |
- |
*1 |
REAR AXLE ASSEMBLY |
*2 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY LH |
*3 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*4 |
REAR UPPER CONTROL ARM ASSEMBLY LH |
*5 |
NO. 2 FLEXIBLE HOSE BRACKET |
*6 |
REAR TRAILING ARM ASSEMBLY |
*7 |
REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
*8 |
REAR NO. 1 SUSPENSION CAMBER ADJUST CAM |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

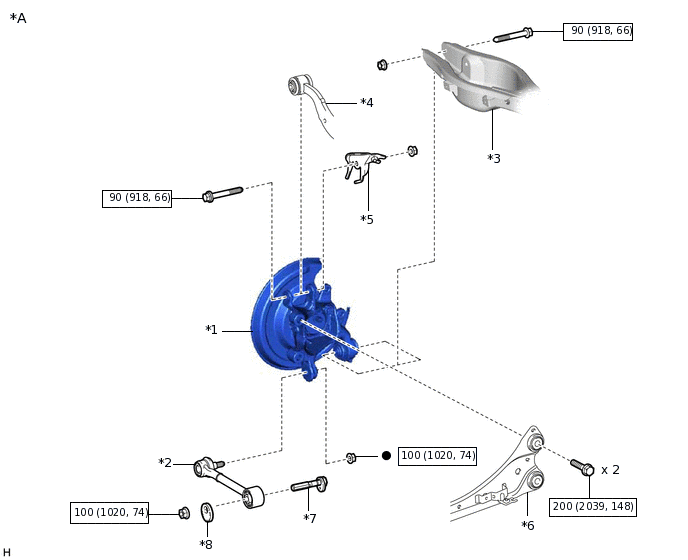

ILLUSTRATION
*A |
for RH Side |
- |
- |
*1 |
REAR AXLE ASSEMBLY |
*2 |
REAR NO. 1 SUSPENSION ARM ASSEMBLY RH |
*3 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
*4 |
REAR UPPER CONTROL ARM ASSEMBLY RH |
*5 |
NO. 1 FLEXIBLE HOSE BRACKET |
*6 |
REAR TRAILING ARM ASSEMBLY |
*7 |
REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
*8 |
REAR NO. 1 SUSPENSION CAMBER ADJUST CAM |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

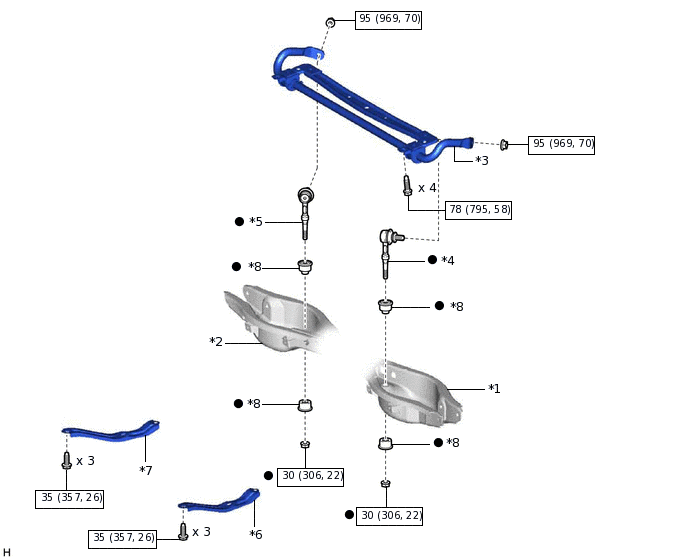

ILLUSTRATION
*1 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*2 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
*3 |
REAR STABILIZER BAR |
*4 |
REAR STABILIZER LINK ASSEMBLY LH |
*5 |
REAR STABILIZER LINK ASSEMBLY RH |
*6 |
REAR SUSPENSION MEMBER BRACE LH |
*7 |
REAR SUSPENSION MEMBER BRACE RH |
*8 |
REAR STABILIZER CUSHION |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

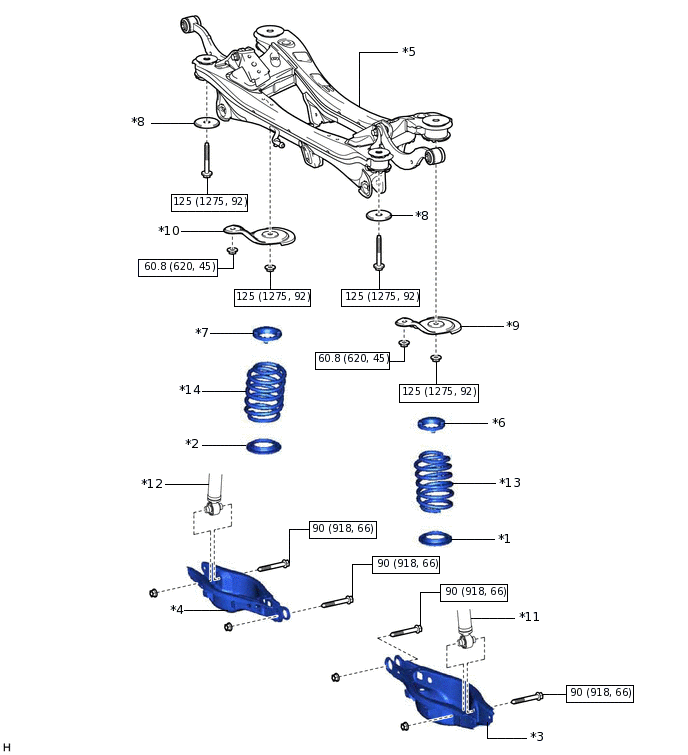

ILLUSTRATION
*1 |
REAR LOWER COIL SPRING INSULATOR LH |
*2 |
REAR LOWER COIL SPRING INSULATOR RH |
*3 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY LH |
*4 |
REAR NO. 2 SUSPENSION ARM ASSEMBLY RH |
*5 |
REAR SUSPENSION MEMBER SUB-ASSEMBLY |
*6 |
REAR UPPER COIL SPRING INSULATOR LH |
*7 |
REAR UPPER COIL SPRING INSULATOR RH |
*8 |
REAR SUSPENSION MEMBER REAR LOWER STOPPER |
*9 |
REAR SUSPENSION MEMBER LOWER STOPPER LH |
*10 |
REAR SUSPENSION MEMBER LOWER STOPPER RH |
*11 |
REAR SHOCK ABSORBER ASSEMBLY LH |
*12 |
REAR SHOCK ABSORBER ASSEMBLY RH |
*13 |
REAR COIL SPRING LH |
*14 |
REAR COIL SPRING RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

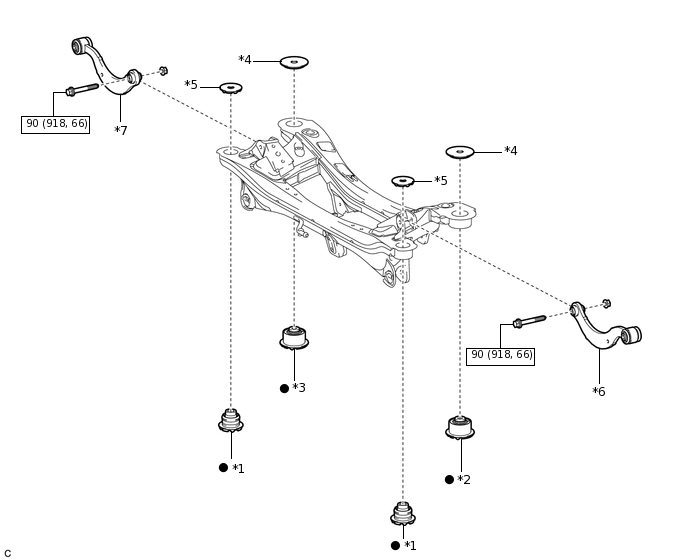

ILLUSTRATION
*1 |
REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION |
*2 |
REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION LH |
*3 |
REAR SUSPENSION MEMBER REAR BODY MOUNTING CUSHION RH |
*4 |
REAR SUSPENSION MEMBER REAR UPPER STOPPER |
*5 |
REAR SUSPENSION MEMBER UPPER STOPPER |
*6 |
REAR UPPER CONTROL ARM ASSEMBLY LH |
*7 |
REAR UPPER CONTROL ARM ASSEMBLY RH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
