EXHAUST MANIFOLD COMPONENTS
ILLUSTRATION
*A |
for Full Cover Type |
- |
- |
*1 |
NO. 1 ENGINE UNDER COVER |
*2 |
FRONT NO. 3 ENGINE UNDER COVER |
ILLUSTRATION
*A |
Type A |
*B |
Type B |
*1 |
FRONT EXHAUST PIPE ASSEMBLY (TWC: Front and Rear Catalyst) |
*2 |
COMPRESSION SPRING |
*3 |
EXHAUST PIPE SUPPORT |
*4 |
FRONT CENTER FLOOR BRACE SUB-ASSEMBLY |
*5 |
GASKET |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

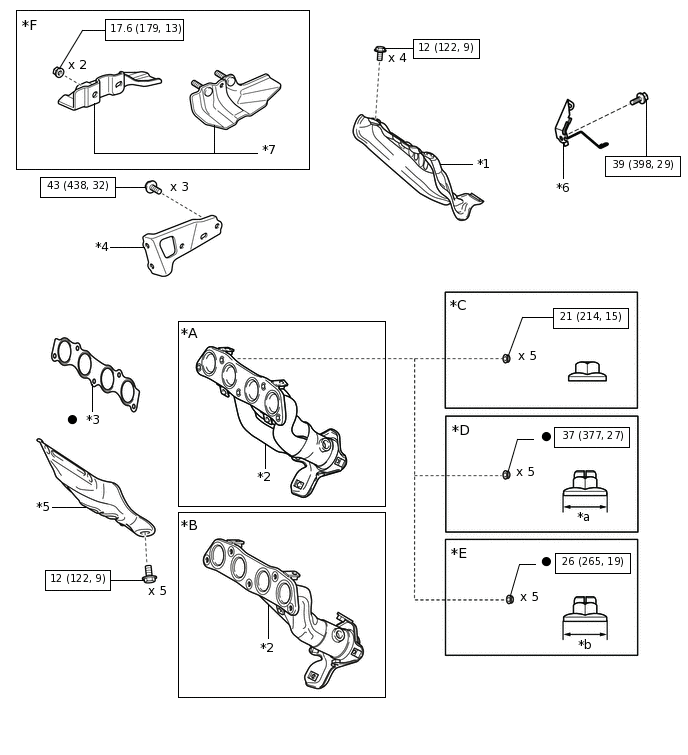

ILLUSTRATION
*A |
Type A |
*B |
Type B |
*C |
Type C |
*D |
Type D |
*E |
Type E |
*F |
w/ Drive Shaft Insulator Sub-assembly |
*1 |
NO. 1 EXHAUST MANIFOLD HEAT INSULATOR |
*2 |
EXHAUST MANIFOLD |
*3 |
EXHAUST MANIFOLD TO HEAD GASKET |
*4 |
MANIFOLD STAY |
*5 |
NO. 2 EXHAUST MANIFOLD HEAT INSULATOR |
*6 |
WIRE HARNESS CLAMP BRACKET |
*7 |
DRIVE SHAFT INSULATOR SUB-ASSEMBLY |
- |
- |
*a |
18 mm (0.709 in.) |
*b |
17 mm (0.669 in.) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
