REAR WIPER MOTOR COMPONENTS

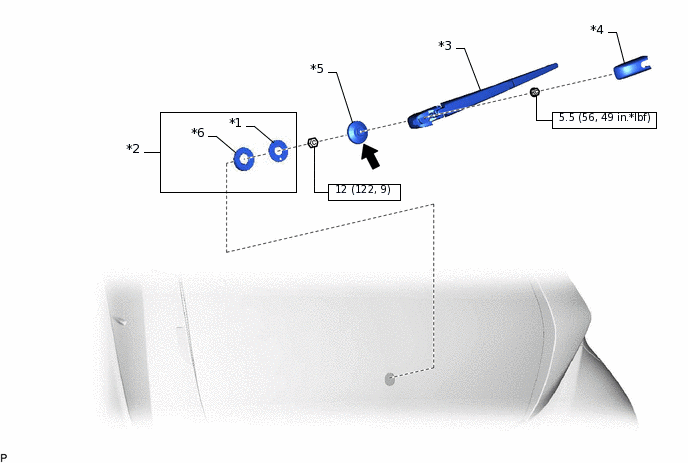

ILLUSTRATION
*1 |
NO. 1 REAR WIPER LINK PIVOT WASHER |
*2 |
NO. 1 REAR WIPER LINK PIVOT WASHER WITH REAR WIPER MOTOR GROMMET |
*3 |
REAR WIPER ARM AND BLADE ASSEMBLY |
*4 |
REAR WIPER ARM HEAD CAP |
*5 |
REAR WIPER LINK CAP |
*6 |
REAR WIPER MOTOR GROMMET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
 |
MP grease |
- |
- |

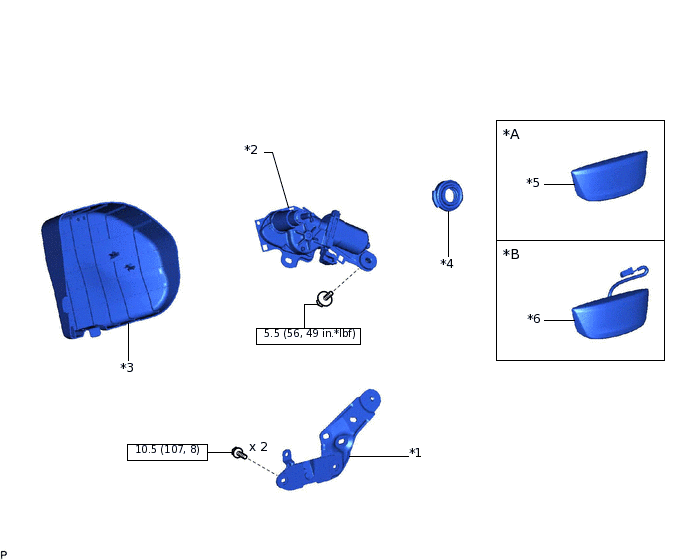

ILLUSTRATION
*A |
w/o Entry and Start System |
*B |
w/ Entry and Start System |
*1 |
BACK WINDOW LOCK STRIKER ASSEMBLY |
*2 |
REAR WIPER MOTOR ASSEMBLY |
*3 |
REAR WIPER MOTOR COVER |
*4 |
REAR WIPER MOTOR HOLDER WITH PACKING |
*5 |
BACK DOOR OUTSIDE HANDLE ASSEMBLY |
*6 |
GLASS HATCH OPENER SWITCH ASSEMBLY |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
