POWER SEAT CONTROL ECU REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Click here

  2. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

    Click here

  3. REMOVE FRONT SEAT CUSHION SHIELD LH

    Click here

  4. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Click here

  5. REMOVE RECLINING POWER SEAT SWITCH KNOB

    Click here

  6. REMOVE POSITION CONTROL ECU AND SWITCH ASSEMBLY

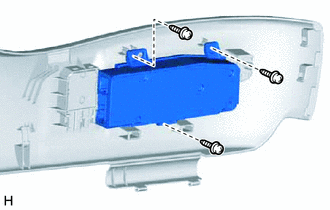

    1. B343098

      Remove the 3 screws and position control ECU and switch assembly.
