CLEARANCE WARNING ECU(for LHD) COMPONENTS

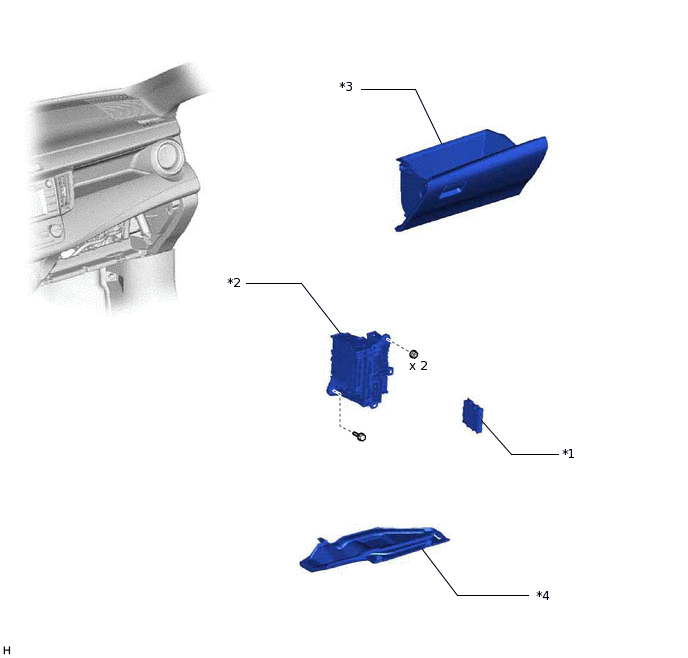

ILLUSTRATION

B421012C02

*1

CLEARANCE WARNING ECU ASSEMBLY

*2

ECU INTEGRATION BOX RH

*3

GLOVE COMPARTMENT DOOR ASSEMBLY

*4

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
